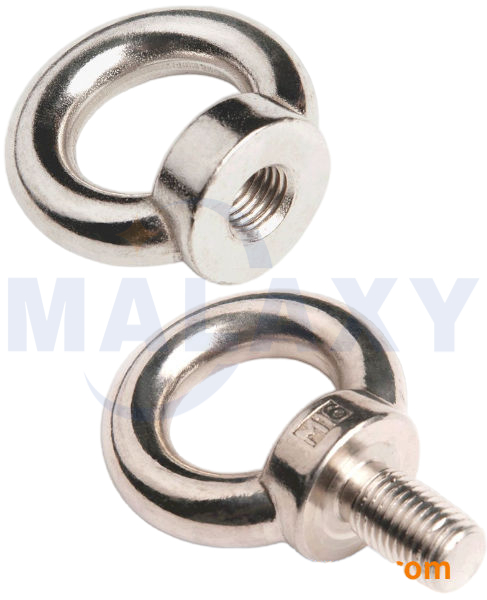

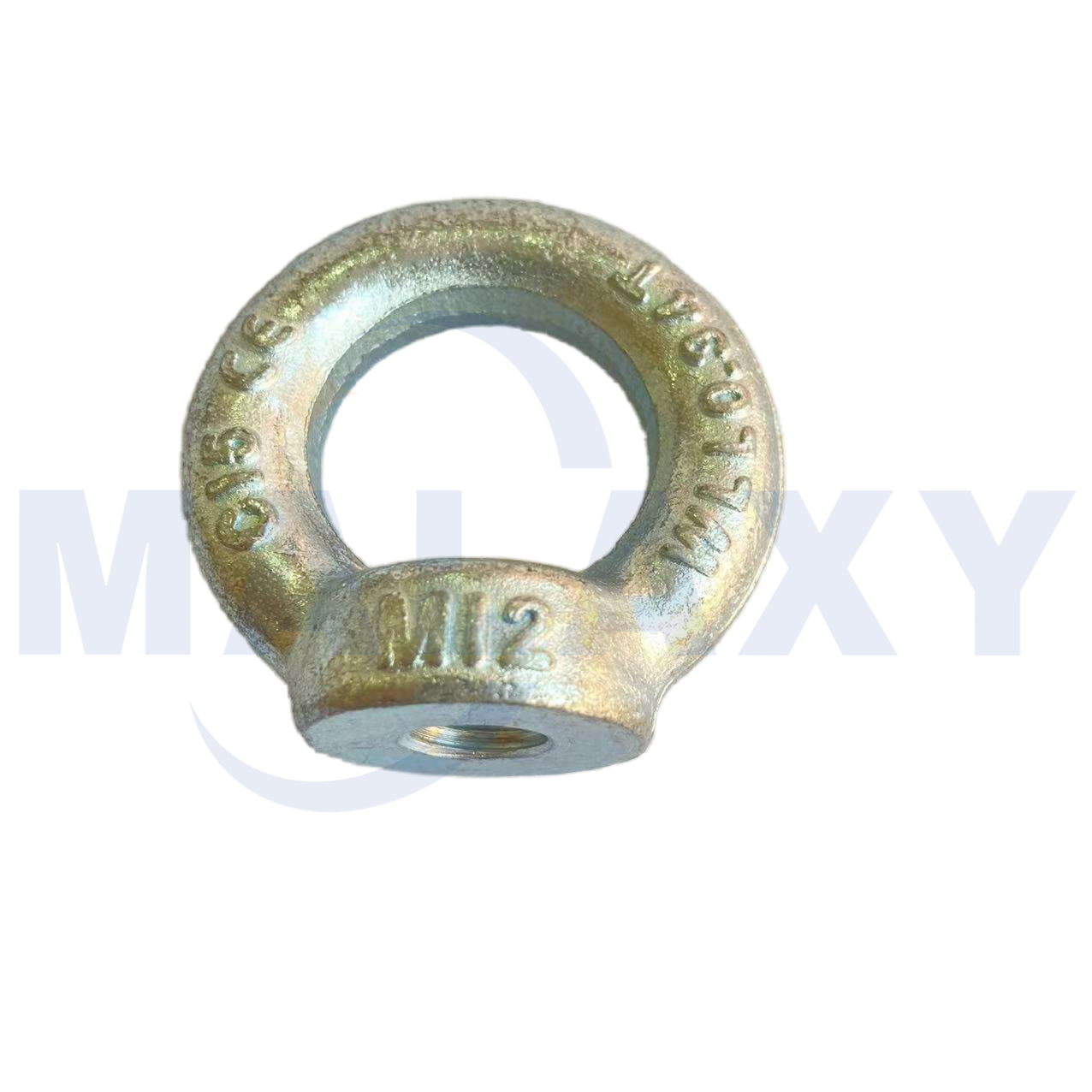

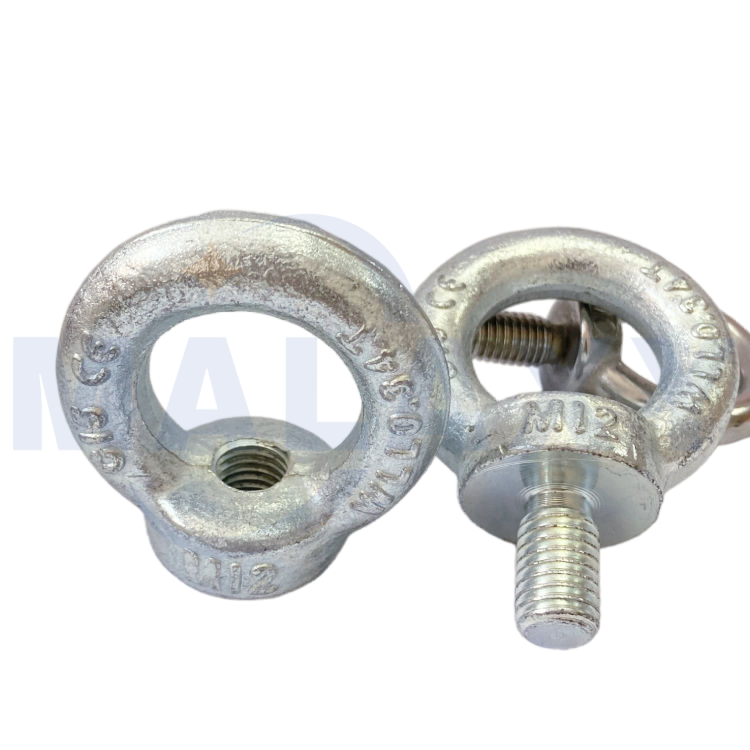

Malaxy Eye Nuts (also known as lifting eye nuts or ring nuts) are high-strength internally threaded fasteners featuring a circular loop (“eye”) at one end. Designed primarily for lifting, rigging, and anchoring applications, they are screwed onto a bolt or threaded rod to provide a secure attachment point for slings, hooks, chains, wire ropes, or cables. As a trusted manufacturer and supplier in the fastener industry, Malaxy offers premium-quality eye nuts manufactured to international standards for global industrial use.

Key Features

• Forged Construction: Drop-forged from carbon steel or stainless steel for superior strength and durability—ideal for heavy-duty lifting and rigging.

• Corrosion Resistance: Available in zinc-plated, hot-dip galvanized, stainless steel A2 (304) and A4 (316) finishes for marine, outdoor, and chemical environments.

• High Load Capacity: Working Load Limits (WLL) range from 0.07 tonnes to over 50 tonnes, with a safety factor of 4:1 or 5:1 as per lifting standards.

• Wide Compatibility: Metric (M6–M100), UNC, UNF, and BSW thread types available to meet diverse application requirements.

• Quality Assured: Manufactured and tested in accordance with ISO 9001:2015, with EN 10204 3.1 test certificates and CE marking available.

• Easy Installation: Simple screw-on design allows for quick attachment and removal, making them ideal for temporary or adjustable rigging setups.

Industry Standards & Certifications

Malaxy Eye Nuts are manufactured to comply with leading international standards:

• DIN 582 – Lifting eye nuts (steel and stainless steel)

• ISO 3266 – Forged steel eyebolts for lifting purposes

• ASTM A193 / A276 – Threaded fasteners and stainless steel bars

• CE Marking – Conforms to EU safety standards

• ISO 9001:2015 – Certified quality management system

Material Options

Surface Finishes Available

• Plain (self-colored)

• Zinc Plated (Electro-Galvanized) – Standard anti-corrosion

• Hot Dip Galvanized (HDG) – Heavy-duty outdoor protection

• Black Oxide – Aesthetic and mild corrosion resistance

• PTFE / Dacromet – Chemical-resistant and high-performance coatings

Applications

Malaxy Eye Nuts are widely used across multiple industries:

• Marine & Offshore: Lifting and securing loads on ships, docks, and offshore platforms.

• Construction & Rigging: Anchor points for hoisting equipment, structural steel erection, and temporary rigging.

• Heavy Machinery & Equipment: Lifting points for motors, pumps, generators, and industrial machinery.

• Automotive & Transportation: Tie-down points for cargo securing and vehicle transport.

• Stage & Entertainment: Suspension of lighting, audio-visual equipment, and stage rigging.

• Sail Shade & Tension Structures: Anchor points for shade sails, tensile fabric structures, and cable tensioning systems.

Dimensional Specifications (Reference – DIN 582 Standard)

Safety & Installation Guidelines

• Ensure the eye nut is fully screwed onto the threaded rod or bolt with complete thread engagement.

• The mating surface must be clean, flat, and of equal or greater strength than the eye nut material.

• For vertical lifting only. Angular lifting significantly reduces load capacity—refer to manufacturer’s angular load reduction charts.

• Never exceed the rated Working Load Limit (WLL). Use a safety factor appropriate for the application.

• Regular inspection for wear, deformation, or corrosion is required for continued safe operation.

• Operating temperature range: -20°C to +200°C for standard carbon and stainless steel grades.

Packaging & Logistics

• Standard export packaging: Cartons + wooden pallets / wooden cases

• Custom packaging and labeling available upon request

• Lead time: 15–30 days depending on order quantity and specifications

• Shipping ports: Shanghai / Ningbo

Why Choose Malaxy?

As a leading fastener manufacturer in China, Malaxy combines decades of industry expertise with state-of-the-art production facilities to deliver eye nuts that meet the highest quality standards. Our commitment to precision manufacturing, rigorous testing, and competitive pricing makes us the preferred supplier for B2B buyers worldwide. We offer OEM/ODM services, bulk order discounts, and responsive customer support to ensure a seamless procurement experience. Contact us today for a quote or to discuss your specific lifting and rigging requirements.
