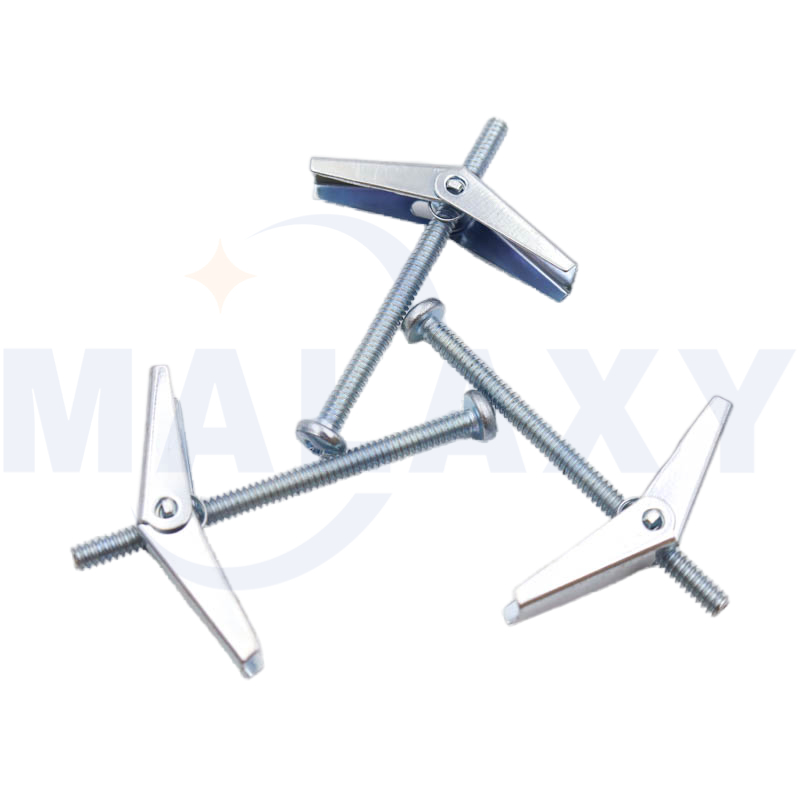

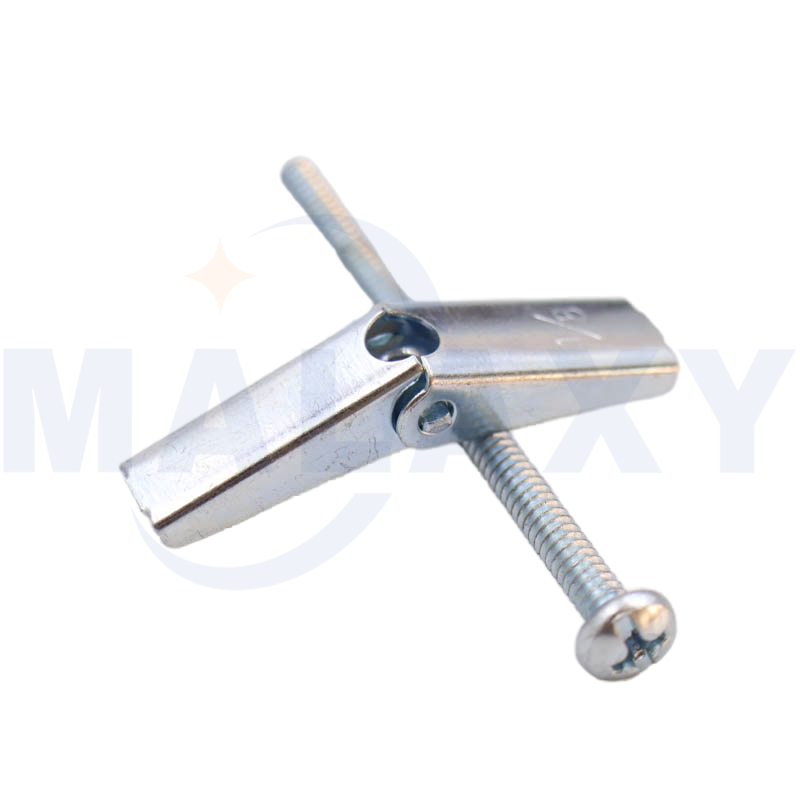

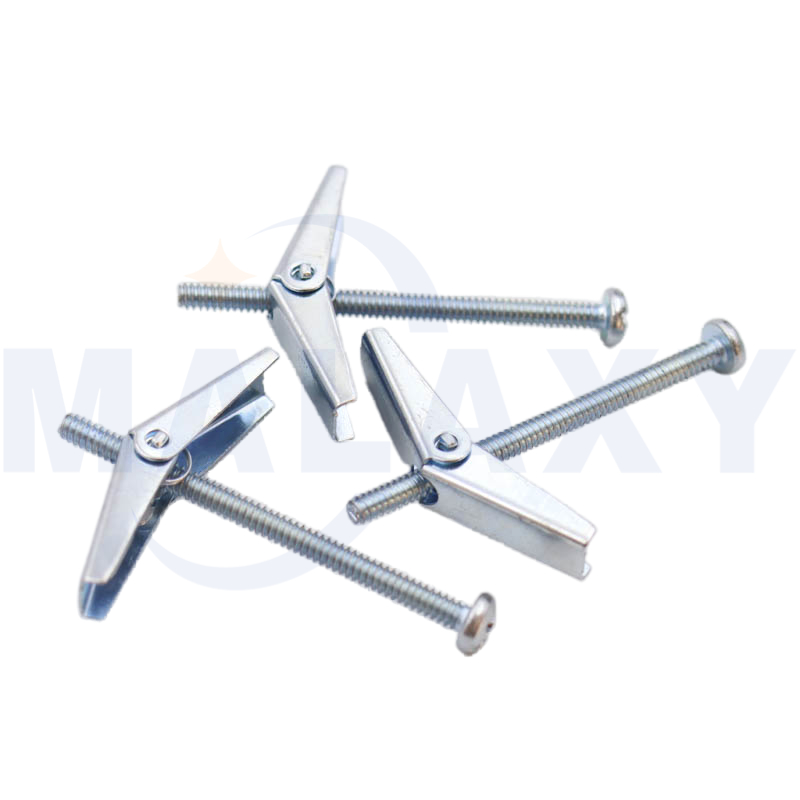

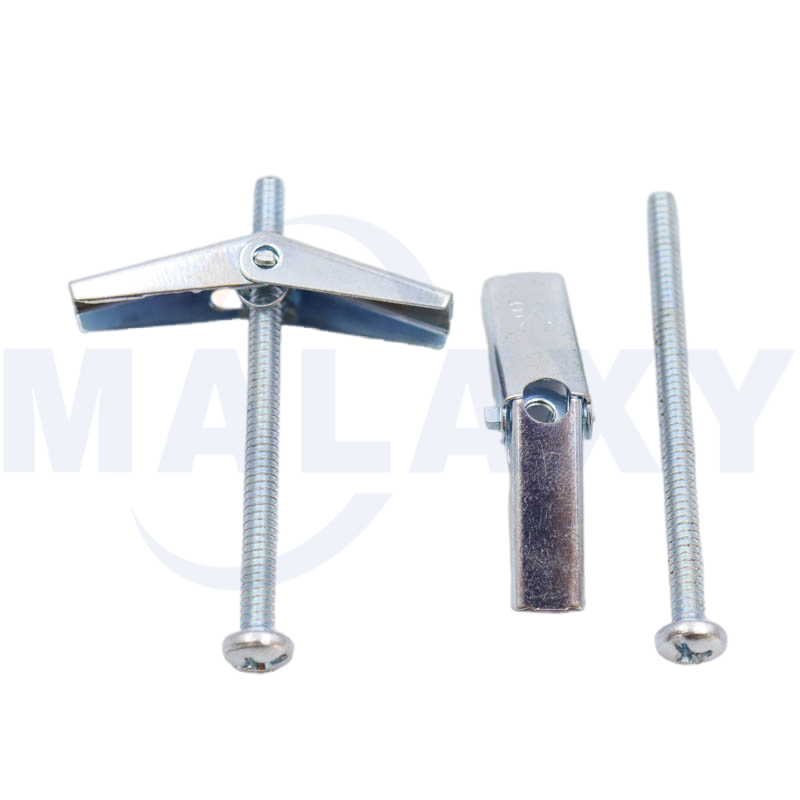

Product Description – Toggle Bolts (Butterfly Anchors)
1. Overview
Toggle bolts, also commonly known as butterfly anchors, hollow wall anchors, or spring toggle bolts, are specialized fastening devices designed to securely anchor objects to hollow walls such as drywall, plasterboard, gypsum board, cavity walls, and hollow ceilings. Unlike standard screws or plastic anchors that rely solely on friction within the wall material, toggle bolts feature a spring-loaded wing mechanism that opens behind the wall surface, distributing the load across a broader area and providing superior holding power.
Toggle bolts consist of two main components: a threaded machine screw and a spring-loaded metal toggle wing assembly. When the folded wings are inserted through a pre-drilled hole, they spring open once inside the cavity. As the screw is tightened, the wings are drawn against the backside of the wall, creating a secure, load-bearing anchor point that prevents pull-through.
2. Key Features
Spring‑Loaded Wing Design – Wings fold flat against the bolt for easy insertion through a drilled hole; once inside the cavity, they automatically spring open to create a broad anchor point.
Superior Load Distribution – Spreads the weight of the fastened object across a large surface area on the backside of the wall, reducing the risk of wall damage or fastener pull-out.
Heavy‑Duty Holding Power – Depending on size and wall thickness, toggle bolts can support substantial loads, with 1/4″ bolts holding up to 310 lbs tensile and 350 lbs shear in 1/2″ wallboard.
Versatile Material Options – Available in zinc‑plated carbon steel (general indoor use), stainless steel 304/316 (corrosion‑resistant for outdoor, marine, or bathroom applications), and other finishes.
Vibration‑Resistant – The spring‑loaded mechanism provides reliable clamping force, making toggle bolts suitable for dynamic environments where vibration may be a concern.
Compatible with Multiple Wall Types – Works effectively in drywall, plasterboard, hollow block, gypsum board, ceiling tiles, and other hollow substrate materials.
3. Types of Toggle Bolts
Type | Description | Best Application |
|---|
Wing‑Style Toggle Bolts | Traditional spring‑loaded metal wings that fold flat and spring open behind the wall. Medium to heavy‑duty capacity. | General hollow wall mounting, shelves, mirrors, cabinets |
Strap‑Style Toggle Bolts | Metal strap that folds and cinches against the bolt, offering a narrower insertion profile. | Limited space behind the wall, tight cavity applications |
Snap Toggle Bolts | Breakaway plastic sleeve holds the toggle closed until it “snaps” open behind the wall. One‑step installation. | Hard‑to‑reach areas, overhead work, retrofit installations |
Low‑Profile Toggle Bolts | Compact wings designed for thin or delicate wall materials. | Thin drywall, metal panels, paneling, decorative surfaces |
Heavy‑Duty Toggle Bolts | High‑strength steel construction for maximum load support in walls and ceilings. | Mounting heavy mirrors, wall safes, ceiling fans, large shelving units |
4. Applications
Residential – Mounting heavy mirrors, large picture frames, wall‑mounted cabinets, shelving brackets, TV wall mounts, floating shelves.
Commercial – Installing handrails, grab bars, signage, coat racks, plumbing fixtures in commercial buildings.
Industrial – Securing conduit, cable trays, ductwork, HVAC components, and machinery to metal decking or hollow block walls.
DIY Projects – Hanging wall art, room dividers, light fixtures, towel bars, and other heavy items where studs are not available.
Construction – Fastening fixtures to drywall, plasterboard, and hollow ceilings where traditional anchors would fail.
5. Materials & Surface Finishes
Material | Finish | Corrosion Resistance | Typical Use |
|---|
Carbon Steel | Zinc Plated (Clear/Yellow) | Moderate (48‑96h salt spray) | General indoor use, dry environments |
Carbon Steel | Black Oxide | Mild | Temporary or non‑critical indoor use |
Carbon Steel | Plain/Uncoated | Minimal | Cost‑effective general fastening |
Stainless Steel 304 (A2-70) | Passivated/Plain | High | Humid environments, bathrooms, kitchens |
Stainless Steel 316 (A4-80) | Passivated/Plain | Excellent | Marine, coastal, outdoor, chemical environments |
Alloy Steel | Dacromet / Zinc‑Aluminum | Very High | Heavy‑duty, high‑corrosion applications |
6. Technical Specifications
Specification | Details |
|---|
Thread Standards | UNC (Unified Coarse) – 6-32, 10-24, 1/4″-20, 5/16″-18, 3/8″-16, 1/2″-13；Metric (M3–M12) available upon request |
Screw Length Range | 1″ to 6″ and longer, customizable based on wall thickness + fixture thickness |
Recommended Drywall Thickness | 9.5–19 mm (3/8″–3/4″) |
Grip Range | Varies by size; ensures wings fully clear back of wall to open properly |
Wing Material | Spring steel, low‑carbon steel (stamped and tempered for spring action) |
Testing Standards | ASTM E488/E488M (pull‑out/pull‑through), EN ISO 898‑1 (mechanical properties) |
Indoor Service Life | 10–15 years in standard humidity conditions |
7. Installation Guide
Drill Hole – Drill a clean hole through the wall material using the specified drill bit size (refer to size chart above). Ensure hole is free of debris.
Fold Wings – Fold the spring‑loaded wings flat against the bolt shaft.
Insert – Insert the folded toggle assembly through the drilled hole until the wings clear the backside of the wall.
Spring Open – The wings will automatically spring open inside the cavity. Gently pull the bolt toward you to ensure wings are flush against the back of the wall.
Mount Fixture – Place the fixture/bracket over the bolt, thread on the washer and nut (if applicable), and tighten until secure. Do not overtighten, as this may crush drywall/gypsum material.
8. Why Choose Our Toggle Bolts?
✅ Factory Direct – Competitive pricing for wholesale and bulk orders. Global supply chain with manufacturing clusters in Zhejiang and Jiangsu provinces, China.
✅ Quality Assurance – ISO 9001 certified production, dimensional inspection per international standards, tensile and shear testing before shipment.
✅ Customization Available – Custom lengths, finishes (zinc plating, yellow zinc, black oxide, Dacromet), and private labeling upon request.
✅ Fast Lead Time – Ready stock for common sizes (1/8″–1/2″ / M3–M12) with 7–15 days for custom orders.
✅ Bulk Packaging Options – Available in poly bags, boxes, or bulk cartons to meet your procurement requirements.
