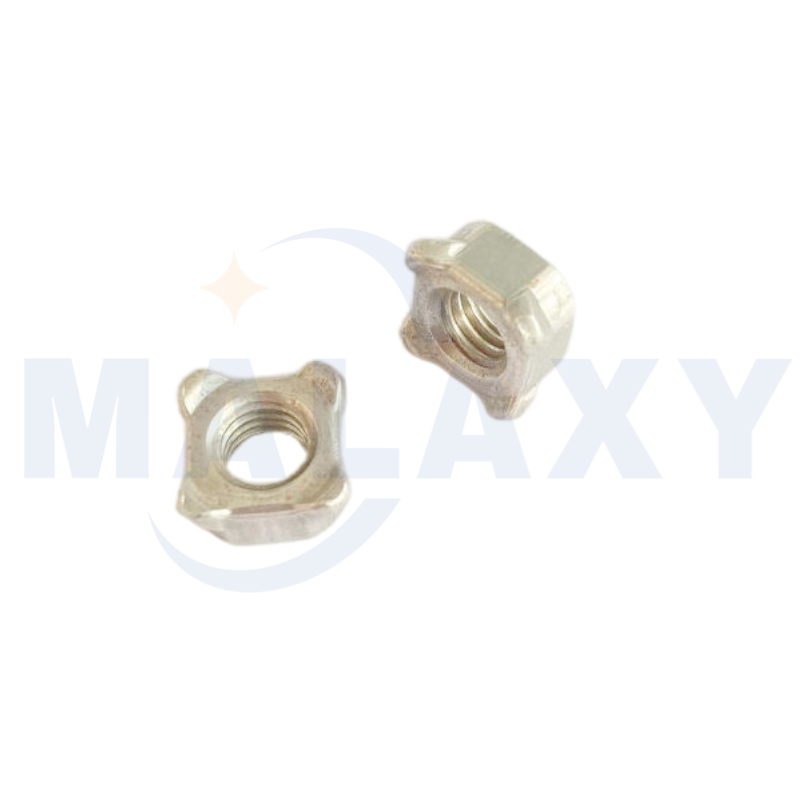

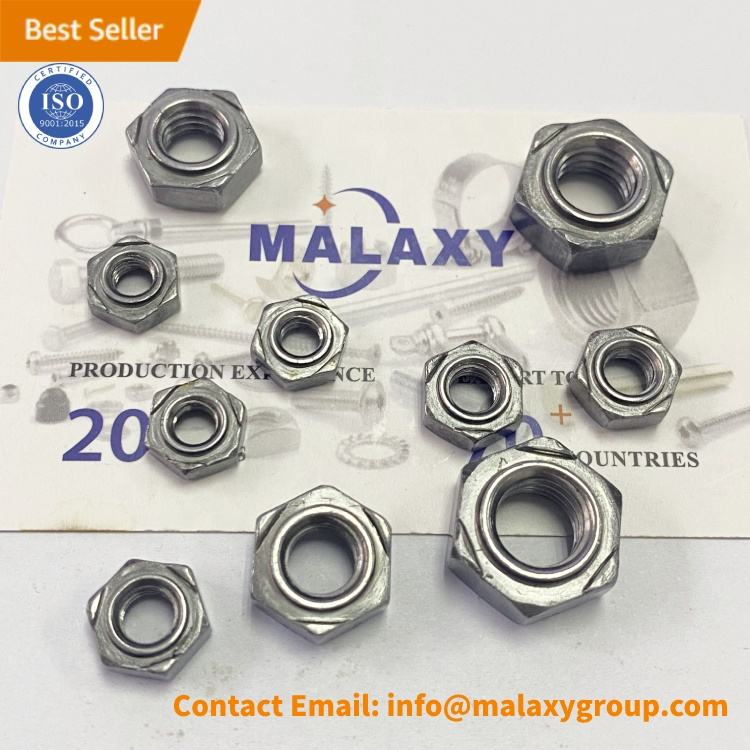

Malaxy weld nuts (welding nuts) are precision-engineered fasteners designed for permanent attachment to metal surfaces through resistance projection welding or spot welding processes. Once welded, they become an integral part of the assembly, providing durable, high-strength threaded anchor points where traditional nut-and-bolt fastening is impractical—particularly on thin-gauge sheet metal, hard-to-reach blind applications, or structures where backside access is unavailable.

Key Features & Benefits

• Permanent metallurgical bond — Welding fuses the nut’s projections with the base metal, delivering vibration-resistant, high-strength threads that outperform loose nuts and clips in dynamic environments.

• Single-side installation — Eliminates the need for backside access, reducing assembly labor and simplifying production in automotive chassis, enclosures, and structural assemblies.

• Self-locating projections — Precision-machined pilot bosses and raised projections ensure accurate alignment during automated welding, delivering repeatable joint quality for high-volume manufacturing.

• High torque resistance — Hex and flange weld nuts withstand greater tightening torque than standard nuts, making them ideal for heavy-duty bolted connections that demand clamp-load retention.

• Weld-through friendly materials — Manufactured from weldable-grade low carbon steel (1008/1010), stainless steel (304/316), and alloy steel, with optional zinc-plating for enhanced corrosion resistance.

• Wide compatibility — Suitable for projection welding, spot welding, MIG, and TIG processes, accommodating both automated production lines and manual fabrication shops.

Product Types & Designs

Malaxy offers a complete range of weld nut configurations to meet diverse industrial requirements:

Materials & Strength Grades

Common Applications

Weld nuts are widely adopted across global manufacturing industries due to their reliability, permanent retention, and single-side installation capability. Typical applications include:

• Automotive & Commercial Vehicles — Chassis frames, body-in-white (BIW) construction, seat structures, suspension systems, engine mounts, and battery tray assemblies for EVs.

• Heavy Equipment & Construction Machinery — Structural steel frameworks, crane components, agricultural implements, and mining equipment requiring vibration-resistant threaded points.

• Sheet Metal Fabrication — Enclosures, electrical cabinets, HVAC units, solar panel mounting frames, and industrial racking systems.

• Aerospace & Transportation — Equipment mounts, interior non-critical structures, and railway carriage assemblies (subject to engineering approval).

• Appliances & White Goods — Refrigerator compressor mounts, washing machine chassis, oven frames, and other sheet-metal assemblies requiring permanent threads.

• Furniture Manufacturing — Metal furniture joints, table legs, chair frames, and modular shelving systems.

Thread Specifications

Malaxy weld nuts are available in both metric and imperial thread configurations to serve global markets:

• Metric Coarse Thread (ISO 6H tolerance) — M3, M4, M5, M6, M8, M10, M12, M14, M16, M20, M24

• Metric Fine Pitch — M8×1, M10×1.25, M12×1.25, M14×1.5, M16×1.5

• UNC (Unified Coarse) — #10-24, 1/4″-20, 5/16″-18, 3/8″-16, 1/2″-13, 5/8″-11, 3/4″-10

• UNF (Unified Fine) — 1/4″-28, 5/16″-24, 3/8″-24, 1/2″-20

Quality Assurance & Compliance

Malaxy weld nuts are manufactured in compliance with international fastener standards to ensure consistent quality and global acceptance:

• ISO 9001:2015 certified manufacturing processes

• Products conform to DIN, ISO, BS, JIS, and ANSI/ASME dimensional requirements

• Full material traceability and mechanical property testing available

• Thread gauging per ISO 1502 standards

• Custom finishes and coatings available upon request

Why Choose Malaxy as Your Weld Nut Supplier?

As a leading fastener manufacturer in China‘s industrial fastening sector, Malaxy brings decades of precision manufacturing expertise to every weld nut we produce:

• Certified quality — Every batch undergoes rigorous dimensional and mechanical testing before shipment

• Competitive lead times — Vertically integrated production from raw material to finished product

• Global export experience — Trusted supplier to automotive OEMs, industrial distributors, and engineering contractors worldwide

• Customization capabilities — Non-standard sizes, special materials, and application-specific designs available

• Technical support — Engineering assistance for weld nut selection, installation parameters, and joint design optimization

Packaging & Shipping

• Standard export packaging: cartons + reinforced pallets / steel crates for sea freight

• Anti-rust treatment: VCI paper / oil coating / zinc-plated finish options

• Labeling: Barcode labels, part number tags, or custom-branded packaging available

• Lead time: 15–30 days based on order quantity and specification

• Shipping: FOB Shanghai, CIF, CFR, EX-Works terms available

Contact Us

For inquiries, technical datasheets, or to request a quotation for weld nuts (welding nuts), please contact the Malaxy sales team. We welcome OEM and ODM projects—let us help you find the optimal fastening solution for your next manufacturing project.
