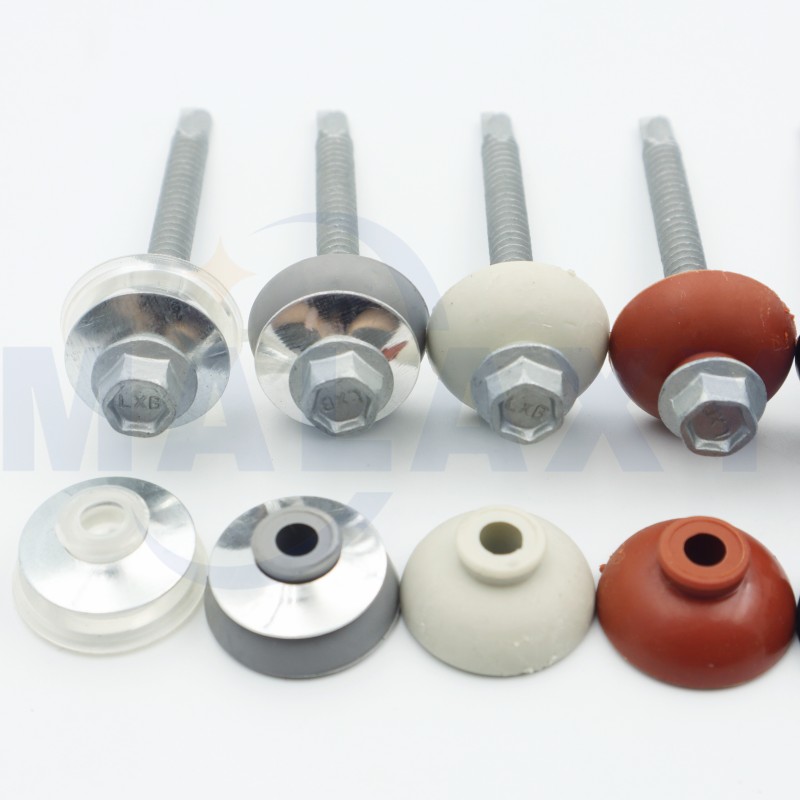

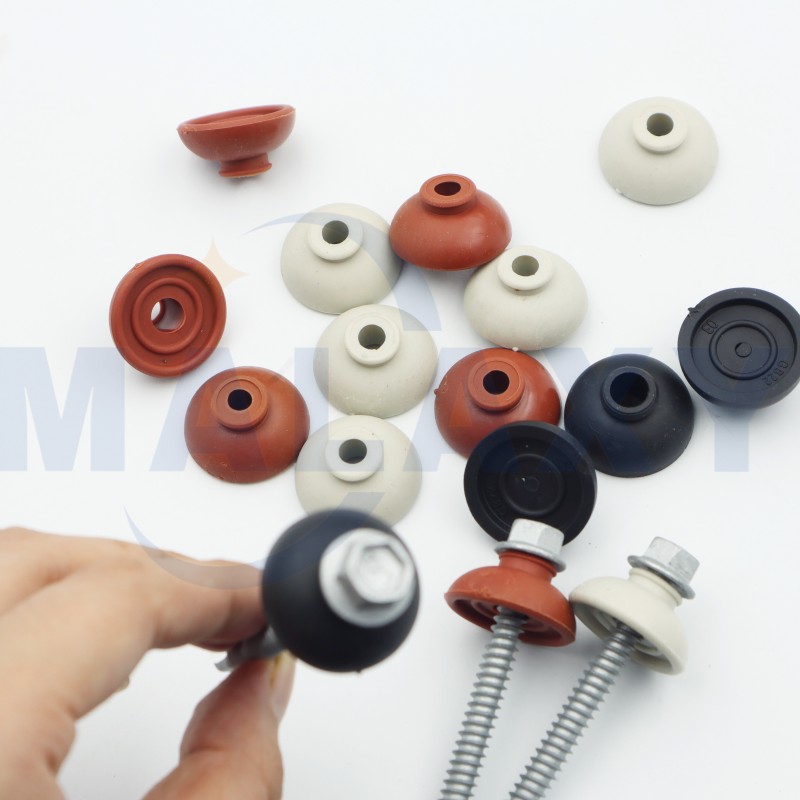

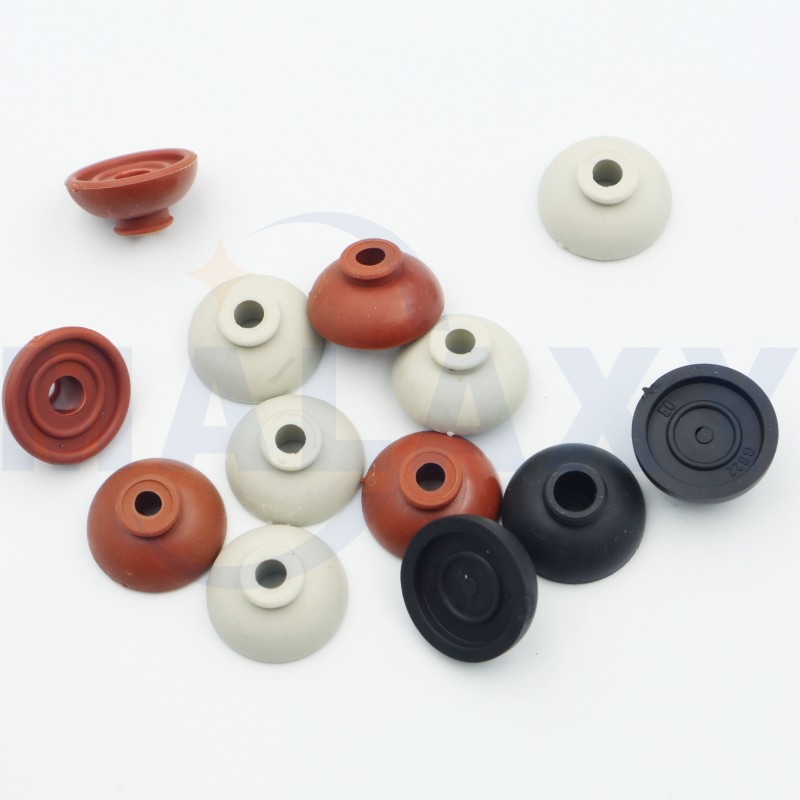

MALAXY EPDM Roofing Washer is a waterproof sealing washer made of durable EPDM rubber bonded with carbon steel or stainless steel, designed for roofing screws, self-drilling screws, metal roofing, wall panels and outdoor fastening applications. It provides reliable sealing, weather resistance and protection against water leakage.
Common Models / Sizes
Common Screw Sizes:
#8, #10, #12, #14 / 4.2, 4.8, 5.5, 6.3 mm
Common Outside Diameters:
14 mm, 16 mm, 19 mm, 25 mm
Common Materials:
EPDM Rubber + Carbon Steel / Stainless Steel 304 / Stainless Steel 316
Common Surface Treatments:
Zinc Plated / Galvanized / Hot-Dip Galvanized / Dacromet / Mechanical Galvanized / Ruspert
Available Colors:
Black / Gray / Custom
Customization:
Custom Size, Material, Color, Surface Treatment and Packaging
EPDM Umbrella Washer / EPDM Roofing Washer – Specifications
Specification | Recommended Values |
|---|---|
Product Type | EPDM Umbrella Washer / EPDM Roofing Washer / EPDM Bowl Washer |
Application | Roofing Screws / Self-Drilling Screws / Metal Roofing / Cladding |
Screw Size | #8 / #10 / #12 / #14 / M4.2 / M4.8 / M5.5 / M6.3 / Custom |
Outside Diameter (OD) | 14 / 16 / 19 / 22 / 25 mm / Custom |
Inside Diameter (ID) | Matched to Screw Size / Custom |
EPDM Thickness | Custom according to application |
Metal Thickness | 0.6 / 0.8 / 1.0 mm / Custom |
EPDM Material | EPDM Rubber |
Metal Material | Carbon Steel / Stainless Steel 304 / Stainless Steel 316 |
EPDM Hardness | 60–80 Shore A / Custom |
EPDM Color | Black / Gray / Custom |
Surface Treatment | Zinc Plated / Galvanized / Hot-Dip Galvanized / Dacromet / Mechanical Galvanized / Ruspert |
Sealing Performance | Waterproof / Weather Resistant / UV Resistant / Ozone Resistant |
Packaging | Bulk / PE Bag / Poly Bag / Plastic Box / Carton / Custom |
Customization | Size / Material / Color / Surface Treatment / Packaging / Logo |
MALAXY EPDM Umbrella Washer, EPDM Roofing Washer and EPDM Bowl Washer are designed to create a reliable waterproof seal between the fastener and the roofing surface. The EPDM rubber sealing layer offers excellent weather resistance, UV resistance and water sealing performance, while the metal backing provides strength and stability.
Available with carbon steel, stainless steel 304 or stainless steel 316, MALAXY EPDM bonded washers can be supplied with zinc plated, galvanized, hot-dip galvanized, Dacromet, mechanical galvanized or Ruspert finishes. Common sizes are available for #8, #10, #12 and #14 roofing screws, as well as 4.2, 4.8, 5.5 and 6.3 mm screws.
They are widely used for metal roofing, steel sheets, wall cladding, sandwich panels, outdoor construction and self-drilling screw applications. Bulk packing, customized packaging, OEM and customer-specific sizes are available.
