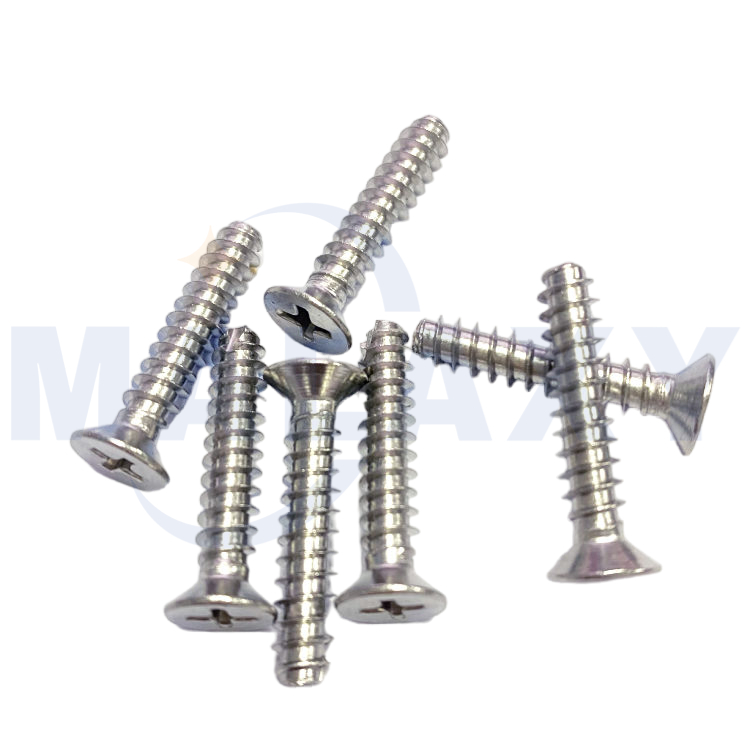

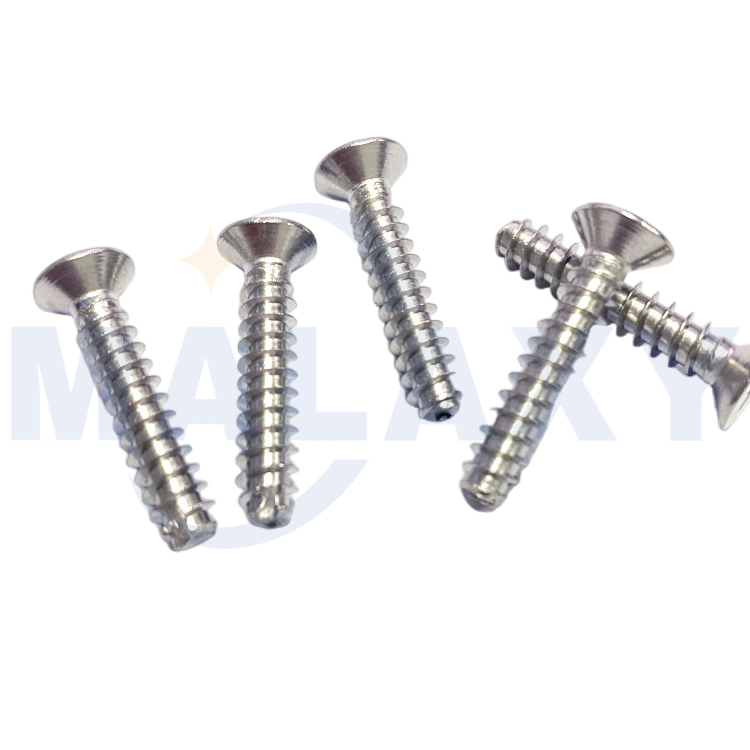

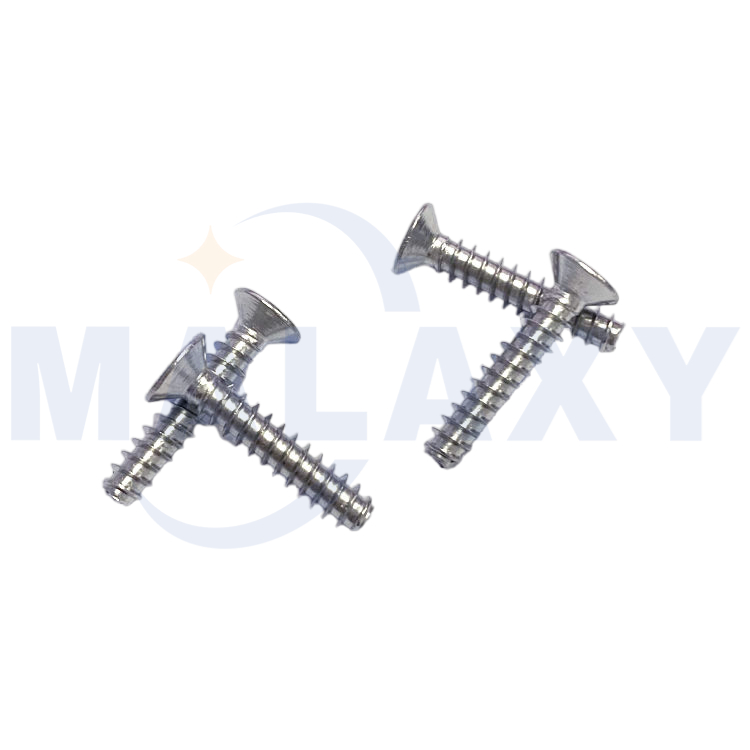

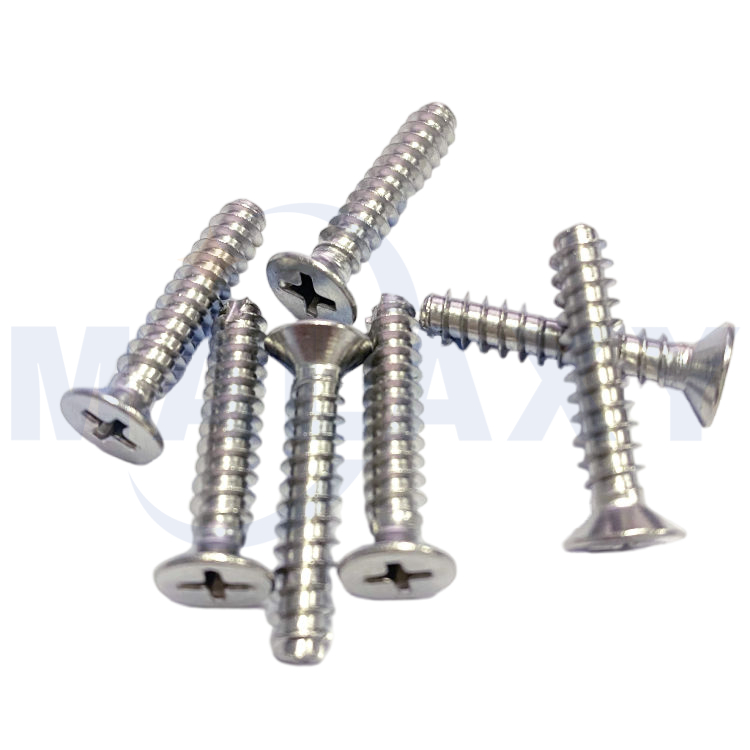

Thread Cutting Screws | DIN 7516 | ANSI Type F / BF

Overview

Thread cutting screws remove material via cutting flutes to form clean internal threads. They require a pre-drilled pilot hole but need lower driving torque than thread-forming screws and cause less stress on the workpiece.

When to Use

• Hard materials (cast iron, steel, stainless steel)

• Brittle plastics (prevents cracking)

• Lower insertion torque required

• Chips are acceptable

Types

Materials & Hardness

• Case-hardened carbon steel (1022/10B21) – Core 25–40 HRC, case 50–60 HRC (cutting edges)

• SS410 – Heat-treatable, wear-resistant, good corrosion resistance

• SS304 / SS316 – General and marine corrosion resistance

Head Styles & Drives

• Hex washer head / Hex head – High torque

• Pan head / Flat countersunk – Phillips drive

• Truss head – Wide bearing surface

Finishes

Black oxide, zinc plated, Dacromet/Geomet, passivated (SS)

Key Applications

• Automotive engine & transmission castings

• Heavy machinery & cast iron components

• Electronics enclosures (sheet metal)

• Plastic assemblies (Type BF/BT)

• HVAC ductwork

Why MALAXY

• Shanghai-based leading fastener manufacturer

• ISO 9001:2015 certified

• Full customization (material, head, coating, length)

• Direct factory pricing

Contact MALAXY for quotes, samples, or engineering support.
