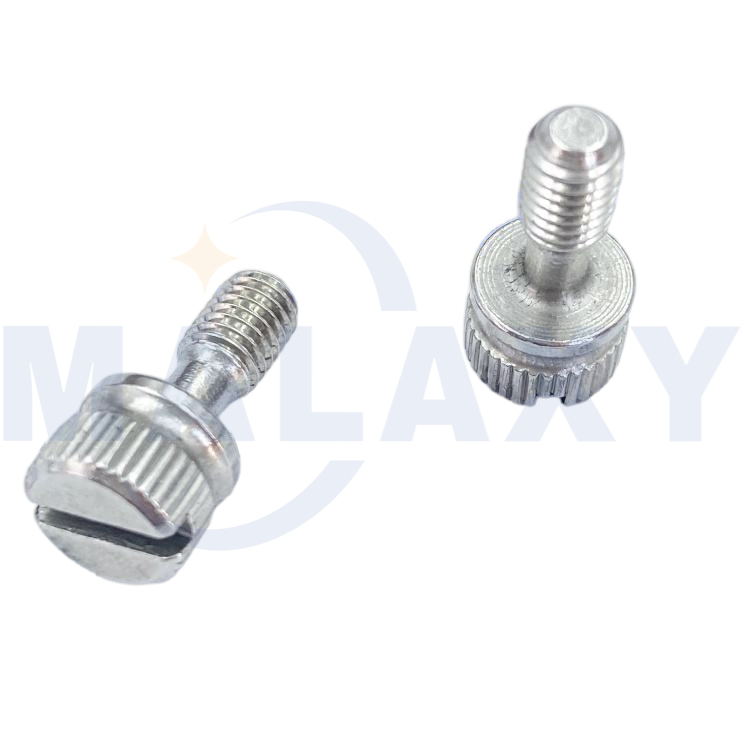

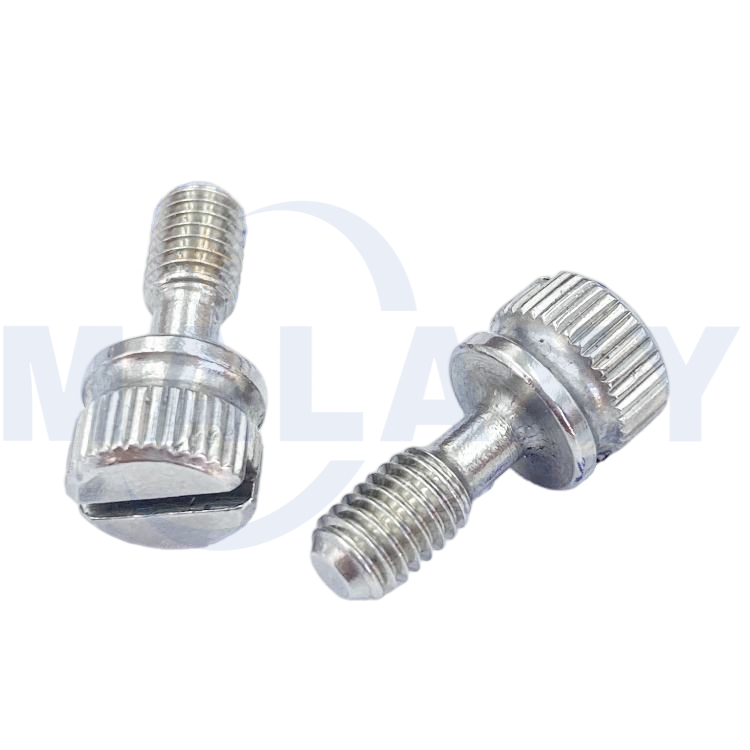

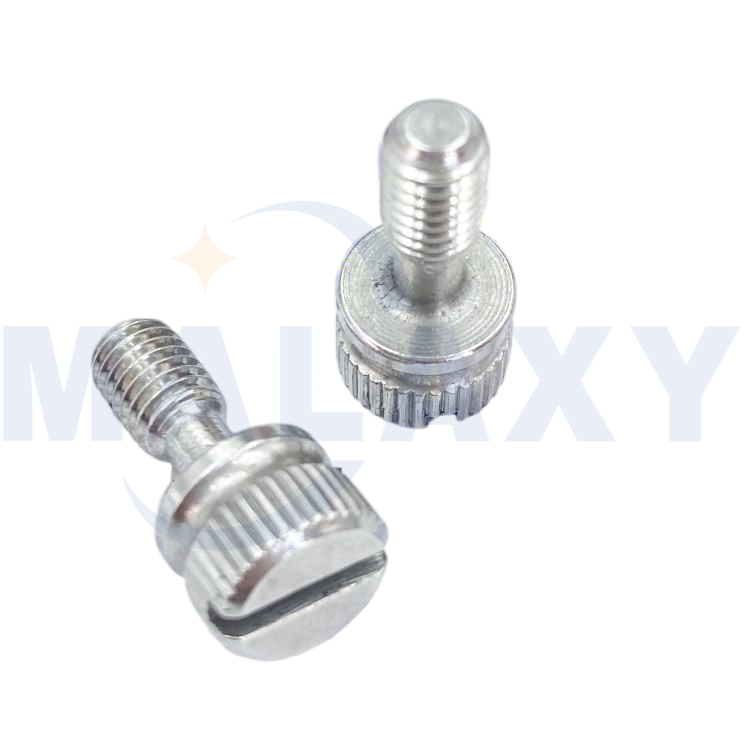

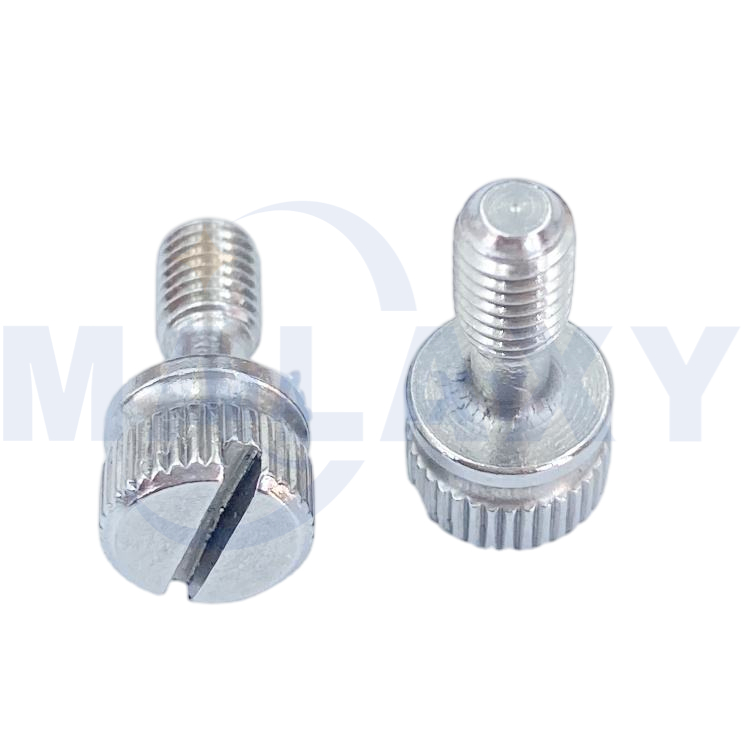

MALAXY, a leading fastener manufacturer headquartered in Shanghai, supplies premium thumb screws (also written as thumbscrews) — manual fasteners designed to be tightened or loosened entirely by hand using only thumb and finger, requiring no tools such as screwdrivers or wrenches. Unlike standard machine screws that demand drivers, thumb screws feature an oversized, textured head (knurled, winged, or spade-shaped) that provides excellent grip and leverage for manual operation.

Thumb screws are the preferred fastening solution wherever quick access, frequent adjustment, or tool-free operation is required — including electronics enclosures, access panels, battery compartments, medical devices, and industrial machinery.

Key Distinction from Standard Screws: A standard machine screw requires a screwdriver or wrench for installation and removal. A thumb screw replaces tools with finger grip — eliminating the need for tools entirely, speeding up maintenance and assembly, and reducing the risk of over-tightening or stripped threads caused by power tools.

Type A vs Type B — Critical Distinction

Thumb screws are divided into two primary types based on shoulder configuration:

Selection Guide:

• Type A (Shoulder) — Choose when the thumb screw needs a precise bearing surface and when you want the head to stop against the mating part. Most common for access panels and equipment covers.

• Type B (Shoulderless) — Choose when the fastener must be fully inserted into a housing or when used as a compression fastener similar to a set screw.

Standards & Compliance

DIN 464 and DIN 653 are the two most widely adopted standards for knurled thumb screws globally. DIN 464 features a shoulder (Type A) for bearing applications, while DIN 653 is shoulderless (Type B) for full insertion into housings.

Material Grades & Mechanical Properties

Material Selection Guide:

• Stainless Steel 304 — Most common; best balance of corrosion resistance and cost for general use.

• Stainless Steel 316 — Maximum corrosion protection; marine, coastal, and chemical environments.

• Carbon Steel (Zinc/Black Oxide) — Cost-effective for indoor industrial applications.

• Brass — Non-magnetic, conductive; ideal for electronics and decorative assemblies.

• Nylon/Plastic — Non-conductive, lightweight; for electrical insulation and low-load applications.

Head Styles

Thread Types

Key Applications

1. Electronics & Computer Hardware

Securing access panels, battery compartment covers, server rack panels, computer cases, oscilloscopes, multimeters, and test equipment enclosures. Knurled thumb screws allow tool-free maintenance for IT technicians and service personnel.

2. Medical Devices

Fastening diagnostic equipment housings, patient monitoring devices, surgical instrument cases, laboratory enclosures, and hospital equipment access panels. Stainless steel thumb screws provide corrosion resistance and biocompatibility for medical environments.

3. Industrial Machinery

Securing inspection panels, service access covers, machine guards, fixture adjustments, and maintenance hatches. Thumb screws enable quick access for routine maintenance without searching for tools.

4. Automotive & Aerospace

Interior trim panels, engine compartment access covers, electronic module enclosures, instrument panel adjustments, and lightweight structural access points. Stainless steel and aluminum thumb screws specified for weight-sensitive and corrosion-resistant applications.

5. Photography & Optical Equipment

Tripod mounts, camera rig adjustments, lens accessories, lighting stands, and quick-release plates. Knurled thumb screws allow photographers to make fast adjustments in the field without tools.

6. Furniture & Consumer Products

Ready-to-assemble furniture, modular shelving systems, display fixtures, lighting equipment, and consumer appliance assemblies requiring easy user adjustment.

7. Laboratory & Test Equipment

Securing instrument panels, calibration access ports, and equipment enclosures in research laboratories and testing facilities.

Key Features

1. Tool-Free Operation – Tighten and loosen by hand using only thumb and finger; no screwdrivers, wrenches, or Allen keys required

2. Oversized Textured Head – Large diameter with knurled, winged, or spade design provides secure grip and excellent leverage

3. Type A (Shoulder) & Type B (Shoulderless) – Shoulder type provides bearing surface for regular use; shoulderless allows full insertion into housing

4. Multiple Material Options – Stainless steel 304/316 (corrosion-resistant), carbon steel (cost-effective), brass (non-magnetic, conductive), aluminum (lightweight), and nylon/plastic (non-conductive)

5. DIN 464 & DIN 653 Compliance – Manufactured to the world's most widely adopted thumb screw standards, ensuring global compatibility

6. Metric & Inch Sizes – Full metric range M2–M10; inch range #4-40 to 1/2″-13; custom lengths available

7. Multiple Surface Finishes – Zinc plating, black oxide, nickel plating, passivation (stainless), and anodizing (aluminum)

8. Optional Drive Features – Slotted or Phillips drive available on select models for applications requiring additional torque with a screwdriver

9. Custom Knurling Patterns – Straight knurling (DIN 464/653 standard), diamond knurling (enhanced grip), or custom patterns upon request

10. Captive / Lanyard Options – Available with retaining lanyards to prevent loss when loosened; ideal for mobile or field-service equipment

Customization & OEM/ODM Services

As a leading fastener manufacturer with decades of industry expertise and a strategic headquarters in Shanghai, MALAXY offers comprehensive customization and OEM/ODM services for thumb screws:

• Non-standard lengths and diameters

• Custom head shapes and knurling patterns

• Special material grades (PEEK, titanium, phosphor bronze)

• Proprietary surface treatments and coatings

• Custom thread sizes and pitches

• Captive screw configurations with lanyards

• Logo marking and custom packaging solutions

• Color anodizing for aluminum thumb screws (branding/identification)

Our in-house engineering team supports OEM and ODM projects from prototype to mass production, with strict adherence to ISO 9001:2015 quality management systems. MALAXY maintains full traceability from raw material sourcing to finished product, providing mill test reports (MTRs), dimensional inspection reports, and certification upon request.

Why Choose MALAXY?

• Headquarters in Shanghai – Strategic location with efficient global logistics, direct port access, and strong English-speaking export support teams

• Industry-leading reputation – Recognized as a top-tier fastener supplier across Asia, Europe, North America, the Middle East, and Latin America

• Comprehensive quality control – Full inspection from raw material to finished product, including dimensional verification, thread gauge inspection, knurling pattern inspection, and mechanical performance validation

• Global standard compliance – Full certification to DIN 464, DIN 653, DIN 465, and DIN 315; ISO 9001:2015 certified; RoHS/REACH compliance for regulated markets

• Competitive pricing – Direct manufacturing with integrated production lines, no middlemen

• Global export experience – Serving clients across North America, Europe, Southeast Asia, the Middle East, Latin America, and Africa

• Technical support – In-house engineering team available for application consultation, Type A vs Type B selection guidance, material selection, knurling pattern optimization, and custom design development

Contact MALAXY today for quotes, technical specifications, custom manufacturing inquiries, sample requests, or engineering consultation.
