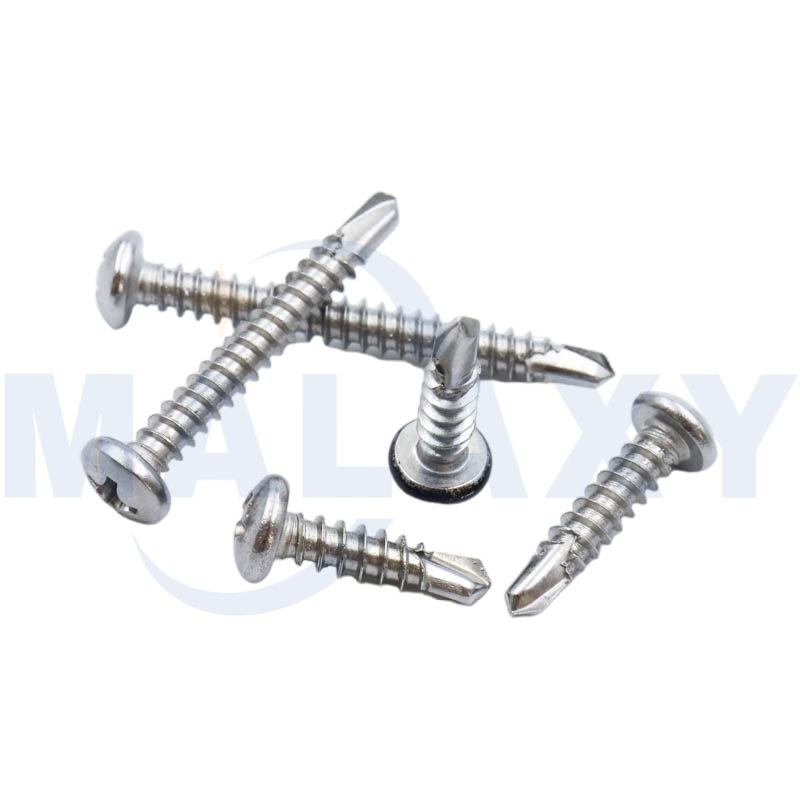

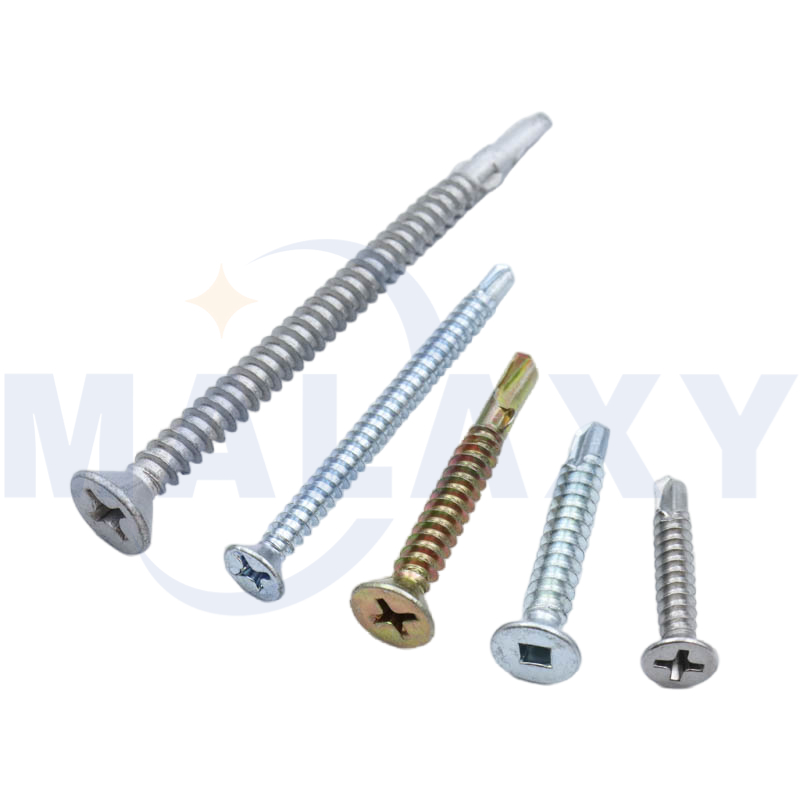

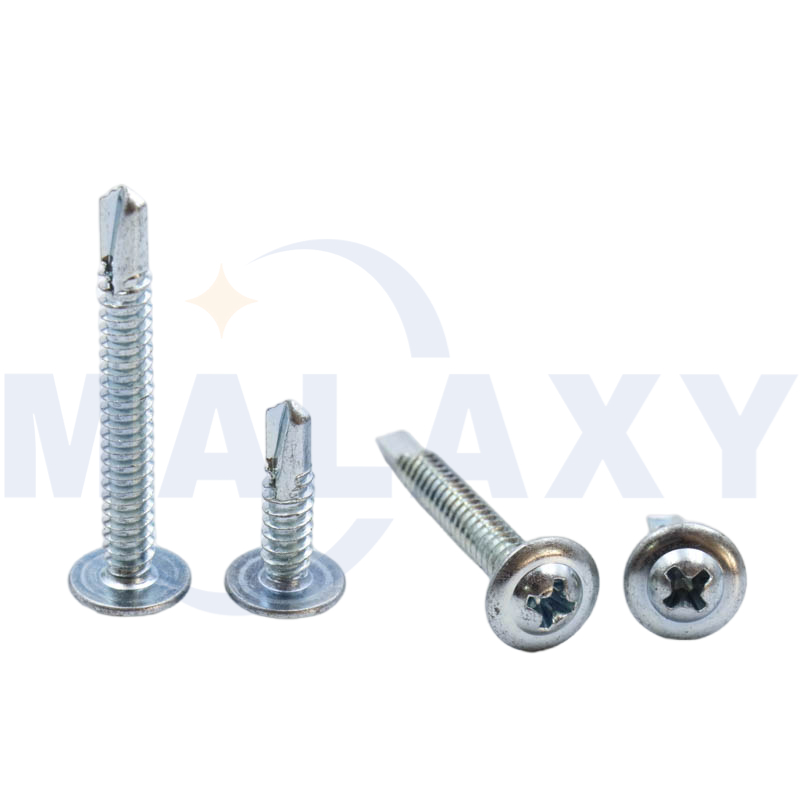

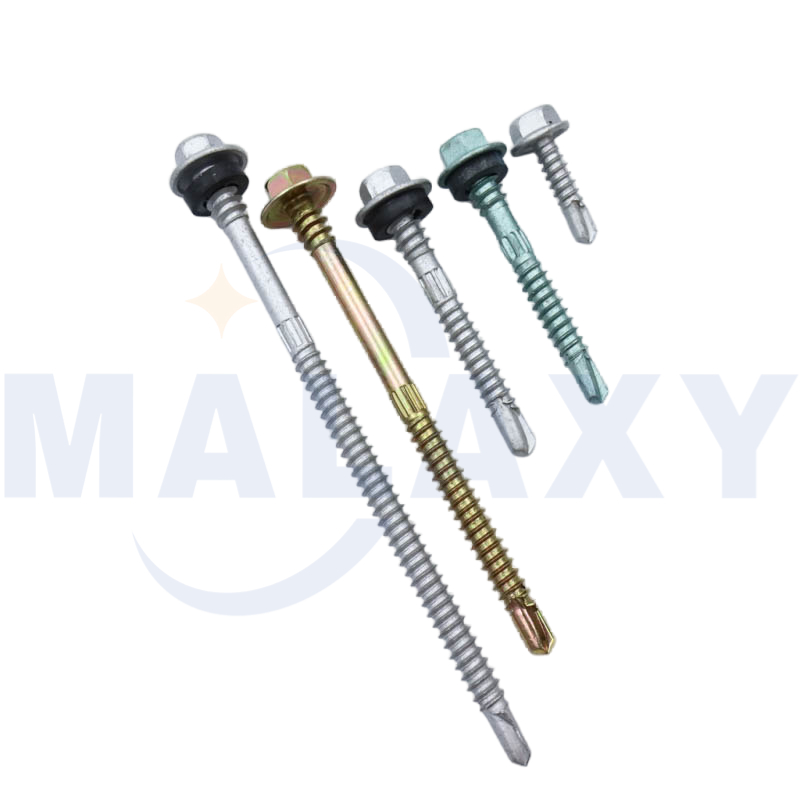

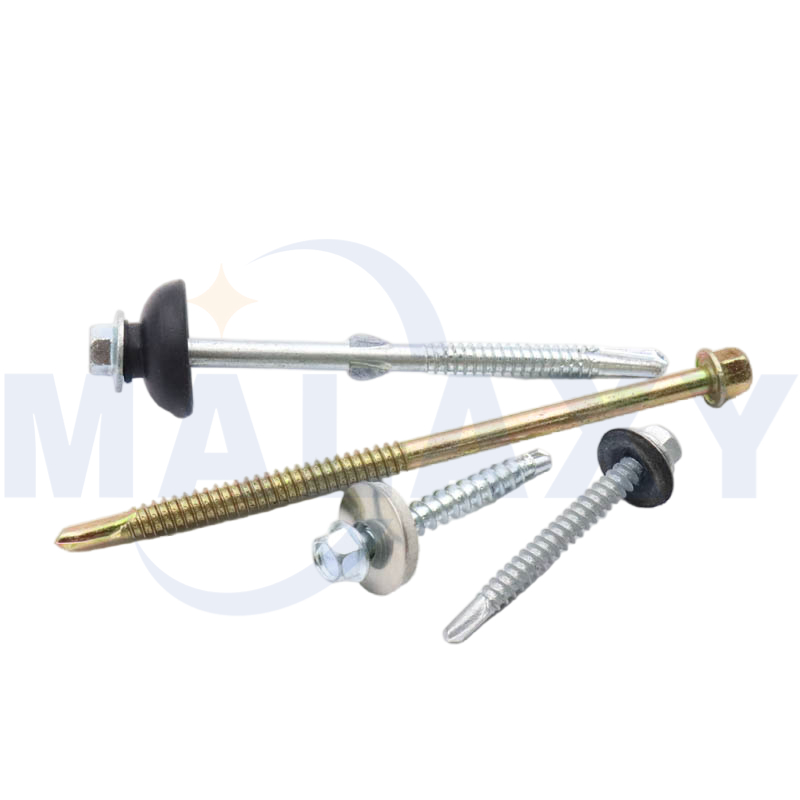

MALAXY supplies high-quality self drilling screws (commonly known as Tek screws) manufactured to DIN 7504, ISO 10666, SAE J78, and ASME B18.6.4 standards. Features a hardened drill-point tip that eliminates pre-drilling—drilling its own hole, tapping its own threads, and fastening in a single operation. Available in carbon steel (heat-treated grade 1022, strength classes 4.8/8.8) and stainless steel (410, 304, 316). Multiple head styles include hex washer head, hex head, flat countersunk head, and pan head with optional EPDM bonded washer for weatherproof sealing. Drill point sizes through accommodate material thickness from thin gauge sheet metal up to 12.7mm steel. Widely used in metal roofing, steel framing, solar panel mounting systems, HVAC ductwork, automotive assemblies, and pre-engineered steel buildings. Custom manufacturing and OEM services supported with full quality certification.
Related News
-
Selecting industrial fasteners requires balancing strength, corrosion resistance, and cost. This guide compares stainless steel fasteners (A2/A4) vs. carbon steel with surface treatments. A4 (316) stainless excels in marine/chemical environments, while high tensile fasteners like Grade 8.8 and 10.9 carbon steel offer superior load capacity. For vibration-prone applications, chemical locking and wedge-locking washers outperform conventional split lock washers. Structural screws have largely replaced lag bolts in wood construction, saving labor hours. The guide covers metric/SAE strength grades, torque values (M6–M16), DIN/ISO/ANSI standards, and common selection mistakes such as ignoring galvanic corrosion or substituting grades without recalculating torque. -
Corrosion causes costly failures for screws, bolts, nuts, and tek screws. Choosing the right surface finish directly impacts durability and total cost. Zinc plating (72–120h salt spray) works for indoor use. Hot-dip galvanizing (500–1,000+h) suits outdoor/marine environments but may affect thread fit. Zinc flake coating (500–1,000+h) avoids hydrogen embrittlement and provides lubricity for self tapping screws and self drilling screws. Stainless steel (316) delivers the best corrosion resistance (no red rust), ideal for harsh conditions despite higher upfront cost. Common pitfalls: hydrogen embrittlement on high-strength bolts/nuts, mixing dissimilar coatings, and ignoring lubrication needs. Matching finish to environment reduces field failures and replacement costs. For reliable performance, always specify salt spray hours and test methods when sourcing self drilling screws, tek screws, hex nuts, or bolts. -
In countless equipment failures and structural damages, the culprit is not necessarily a broken component—it is often an improperly selected fastener. Engineers frequently default to over-strength bolts, ignore environmental conditions, or overlook certification standards, only to discover that the most expensive fastener fails faster than a well-matched, cost-efficient counterpart. Understanding the science behind fastener selection—from corrosion resistance and torque specifications to anti‑loosening mechanisms—can not only extend product life cycles but also substantially reduce hidden costs associated with maintenance, downtime, and warranty repairs.
