Chapter 1 | Material Selection: The First and Most Common Mistake

1.1 Stainless vs. Carbon Steel – Corrosion Mechanisms at Work

The most widespread selection error concerns material choice relative to the service environment. Stainless steel fasteners and carbon steel fasteners follow fundamentally different corrosion pathways—yet many practitioners treat them as interchangeable.

For carbon steel fasteners, exposure to moisture initiates uniform corrosion. Research on marine environments indicates that rust scale on carbon steel introduces an additional IR drop in the electrochemical circuit, weakening the polarization effect of the cathodic region on the anodic crevice. The differential oxygen supply leads to more severe corrosion at exposed thread areas, primarily in the form of uniform thickness reduction. In contrast, stainless steel fasteners (particularly grades 304 and 316) rely on a passive oxide film for protection. However, in low oxygen crevices—under nut bearing surfaces, within threaded joints, or inside wood—this passive film degrades, and the galvanic coupling between the exposed shank and the crevice drives accelerated pitting attack. Crevice corrosion, rather than uniform rusting, becomes the dominant failure mode for stainless steel fasteners in marine environments.

1.2 Comparison of Common Fastener Materials

When evaluating stainless vs carbon steel fastener corrosion resistance for a specific application, 316 stainless steel fasteners demonstrate superior performance in aerated seawater and atmospheric salt spray due to molybdenum content. Nevertheless, they remain susceptible to crevice corrosion in stagnant, low oxygen conditions. For marine environment fastener applications, one comprehensive comparative study concluded: 316 is the standard “low cost” marine solution for deck hardware and above waterline fittings, while carbon steel with cathodic protection (zinc anodes) still has a role in steel hull structures.

1.3 Electrifying Concern: Galvanic Compatibility

A frequently overlooked aspect when how to choose the right fastener material is galvanic compatibility. Within the galvanic series of seawater, 316 stainless is relatively noble (cathodic) compared to carbon steel and aluminum. When a 316 stainless fastener contacts a steel or aluminum part, the steel or aluminum corrodes preferentially. For steel hulls, 316 bolts remain intact while the steel body becomes sacrificial—often aided by zinc anodes. Conversely, if 316 stainless fasteners are paired with copper alloys or certain carbon steels, the less noble metal will corrode. Isolating washers or compatible alloy selection is recommended to prevent dissimilarmetal attack.

Chapter 2 | Fastener Types and Application Specific Selection

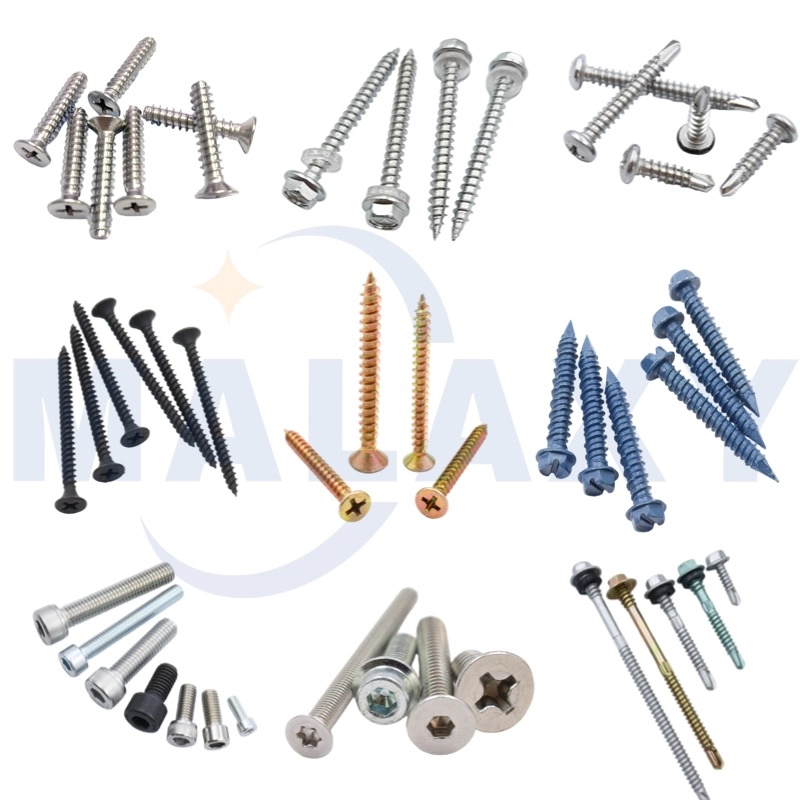

2.1 Self Tapping Screws vs. Self Drilling Screws: A Critical Distinction

Self tapping screws and self drilling screws (often referred to by the brand name Tek screws) are frequently used interchangeably, yet their operational principles are distinct. Self drilling screws are equipped with a drill bit shaped tip that simultaneously drills the pilot hole and cuts threads in a single operation—eliminating the need for predrilling. In contrast, self tapping screws require a pre drilled pilot hole before they can cut or form their own threads. An important engineering rule: all self drilling screws are self tapping, but not all self tapping screws are self drilling.

Self tapping screws are further categorized into thread forming (pushing material aside without removal) and thread cutting (removing material via flutes). Thread forming self tapping screws are suitable for thin or ductile materials such as plastics and aluminum, while thread cutting self tapping screws are preferred for harder substrates like steel. Self drilling screws with wings can also deburr the hole in thin sheet metal before the threads engage, preventing “spinning out”.

2.2 Structural Screws: Framing, Deck, and Roofing

Structural screw applications require careful attention to shear and tensile demands. Framing screws and construction screws used in load bearing timber and light gauge steel framing must meet specific code requirements (e.g., ICC ES reports). Deck screws are engineered with corrosion resistant coatings (often stainless steel or proprietary ceramic polymer finishes) to withstand outdoor moisture and wood tannins. Roofing screws typically feature integrated sealing washers (EPDM or neoprene) to prevent water infiltration around the fastener hole—a critical requirement when used with metal roofing panels. Wood screws differ from deck screws in thread geometry: wood screws have a smooth upper shank to draw boards together, while deck screws feature full threading for maximum pull out resistance in dimensional lumber. For applications requiring fastening into both wood and steel substructures, self drilling screws with appropriate point lengths (commonly #2 through #5 points) are recommended.

2.3 Threaded Rods, Nuts, and Washers in Tension Systems

Threaded rods (also known as all thread rods) serve distinct roles where conventional bolts are insufficient in length or when connections require field cut adjustability. Threaded rods are commonly manufactured from carbon steel, zinc plated mild steel, or stainless steel—with the choice dictated by exposure conditions. Carbon steel rods without plating are best suited for dry environments, while zinc plated carbon steel rods resist corrosion in wet conditions. Hex nuts used with threaded rods must match both diameter and thread pitch (coarse or fine series); mismatched threads—such as combining UNC with metric—remain a persistent field error leading to stripping or jamming.

Flat washers distribute clamping load over larger surface areas to prevent embedment into softer materials, while lock washers (including split lock and tooth lock designs) are intended to maintain tension under dynamic conditions. However, split lock washers have demonstrated limited efficacy under extreme vibration, leading many engineers to prefer nylon insert nuts (lock nuts) or threaded locking compounds for critical applications.

Chapter 3 | Anti Loosening Solutions for Vibration Prone Applications

Vibration loosening remains one of the most persistent fastener reliability challenges. Vibration generates relative micromotion between engaged threads, gradually rotating nuts off bolts regardless of initial tightening torque. Vibration loosens fasteners by creating relative motion between the threads—a phenomenon affecting all nuts and bolts subject to dynamic loading.

Proven Anti Loosening Strategies

Engineers should consider three factors when selecting anti loosening solutions for vibration applications: first, the frequency and amplitude of vibration (low frequency, high amplitude vibrations often require positive mechanical locks like cotter pins); second, temperature exposure (thread locking compounds degrade above 150 200°C, while nylon inserts soften above 120°C); third, maintenance requirements—applications needing periodic disassembly favor jam nuts or slotted hex nuts over permanent solutions.

Chapter 4 | Torque, Strength Grades, and Certification Compliance

4.1 Understanding Grade Markings and Strength

High tensile fasteners are categorized by strength grades. For metric fasteners, property classes 8.8, 10.9, and 12.9 indicate increasing tensile strength (800 MPa, 1000 MPa, and 1200 MPa nominal). For inch series fasteners, SAE grades include Grade 5 (medium strength) and Grade 8 (high strength). The grade 8 bolt strength comparison frequently reveals that a Grade 8 bolt offers roughly 25-30% higher tensile strength than Grade 5 (150 ksi vs. 120 ksi). However, a stronger bolt is not always the correct solution—fasteners require a certain degree of elasticity to maintain clamp load under dynamic conditions. A stronger bolt may stretch less and fail more quickly if the joint design requires compliance rather than rigidity.

When applying appropriate fastener torque, reference fastener torque charts based on thread size, lubrication condition (dry vs. lubricated), and material grade. Under torquing leads to insufficient clamp load and vibration loosening; over torquing can strip threads, yield the fastener, or damage the clamped material. For critical bolted joints, torque angle monitoring provides more reliable preload control than torqueonly methods.

4.2 Certification and Supply Chain Confidence

For projects requiring CE certified fasteners or compliance with ASTM, ISO, DIN, or ASME standards, procurement specifications should include: material test reports (MTRs) confirming chemical composition, mechanical test reports verifying tensile and yield strength, and certification of coating thickness where corrosion protection is specified. Buyers searching for a fastener supplier China or industrial fasteners manufacturer with verifiable quality should request third party inspection reports (e.g., SGS, BV, TÜV) and confirm that the supplier operates an ISO 9001 certified quality management system. Hardware fasteners intended for construction screws and automotive bolts applications must meet industry specific requirements: construction fasteners often require ICC ES reports, while automotive bolts follow OEM dimensional and performance specifications.

Frequently Asked Questions (FAQ)

Q: How do I determine the correct pilot hole size for a self tapping screw?
The correct pilot hole diameter depends on the screw type (thread forming vs. thread cutting) and base material hardness. For thread forming self tapping screws, the hole should be approximately the core diameter of the screw; for thread cutting self tapping screws, the hole should be roughly the pitch diameter. Standards such as ANSI/ASME B18.6.4 (inch threads) and B18.6.5 (metric threads) provide detailed pilot hole tables. When in doubt, test on representative material samples before production.

Q: Can I use stainless steel fasteners with aluminum components without galvanic corrosion issues?
316 stainless steel fasteners are significantly more noble than aluminum, which creates a galvanic pair where aluminum will corrode preferentially when exposed to an electrolyte (saltwater, moisture). Mitigation strategies include: applying isolating coatings or barrier tapes between dissimilar metals, using aluminum compatible fastener coatings, or inserting isolating washers or plastic sleeves to break electrical continuity.

Q: Which anti loosening solution is most effective for high vibration equipment?
In a comparative test of six anti vibration methods, wedge locking washers (Nord Lock type) and high strength thread locking compounds (Loctite 263) demonstrated the highest resistance to vibration induced loosening. For applications requiring disassembly, jam nuts or nylon insert nuts (prevailing torque type) provide reasonable performance with reusability.

Q: Where can I find reliable technical specifications for custom fasteners wholesale?
Reliable technical sources include: ASTM F606 (mechanical testing methods), ISO 8981 (mechanical properties of fasteners), industry association publications (IFI, Industrial Fasteners Institute), and manufacturers’ technical datasheets. For custom fasteners wholesale requirements, clearly specify material grade, dimensional standards, coating/finish, thread class, and required certifications (test reports, inspection certificates).
Key Terms Explained

• Fastener torque chart: Reference table indicating recommended tightening torque for a given fastener size, grade, and lubrication condition. Essential for achieving proper clamp load without damage.

• Lock nuts: Nuts with integrated locking features—most commonly nylon inserts (prevailing torque type) or deformed threads—that resist loosening under vibration.

• Bulk fastener price: Pricing structure for larger quantities, where per‑unit cost decreases with volume due to fixed production setup and material economies.

• Crevice corrosion: Localized corrosion occurring in narrow gaps (e.g., under nut bearing surfaces or within threaded interfaces) where oxygen supply is restricted and the passive film on stainless steel fasteners breaks down.

• Metric fasteners: Fasteners dimensioned in millimeters with thread pitch specified as distance between threads (e.g., M10×1.5). Increasingly adopted globally alongside inch‑series fasteners (UNC, UNF).

 Final Thoughts

A well‑engineered bolted joint requires more than tightening a nut onto a bolt—it demands a systematic evaluation of material compatibility, mechanical loads, environmental exposure, vibration resistance, and torque specifications. Engineers and maintenance professionals who master these principles reduce failure rates, extend equipment lifespan, and lower total ownership costs.

For those seeking deeper technical reference materials—including salt‑spray test reports comparing coating systems, torque‑tension relationship curves for high‑tensile fasteners, and galvanic compatibility charts for multi‑material assemblies—detailed test documentation from ISO 17025‑accredited laboratories is available for independent review. Comprehensive test reports and application‑specific technical datasheets can provide the data‑backed confidence needed for mission‑critical fastener selection.
Have a specific fastener challenge? Bookmark this guide for future reference when evaluating materials, strength grades, or anti‑loosening requirements. For engineered drawings or project‑specific recommendations, consulting a dedicated applications engineer can prevent the most common—and costly—selection mistakes.
