Self-Tapping Screws: What They Are, How They Work and Where to Use Them

Introduction

Choosing the right screw depends on more than size. The material, thickness, thread design, point, coating and installation method all affect fastening performance.

Self-tapping screws are widely used because they can create or form their own mating thread during installation. They are commonly used in sheet metal, plastic, aluminium, appliances, machinery and general industrial assembly.

But how do self-tapping screws work, and how do you choose the right type for your application?

What Are Self-Tapping Screws?

Self-tapping screws are threaded fasteners designed to create or form a mating thread in the material during installation.

Depending on the design, the screw may:

• Cut material to create a thread

• Displace material to form a thread

• Require a pre-drilled pilot hole

• Work directly in suitable thin materials

The correct screw depends on the substrate. A screw designed for sheet metal should not automatically be used for plastic or wood.

ISO 1478 provides specifications for tapping screw threads and thread ends, while ISO 2702 covers mechanical and physical properties for certain heat-treated steel tapping screws.

How Do Self-Tapping Screws Work?

There are two common mechanisms.

Thread-Cutting Screws

These screws remove a small amount of material as they enter the substrate. They are commonly used in metal assemblies where controlled thread cutting is required.

Typical applications include:

• Sheet metal

• Electrical enclosures

• Metal panels

• Machinery

• Appliance housings

Thread-Forming Screws

These screws displace the surrounding material instead of cutting it away. They are often used in softer materials, including certain plastics and thin metals.

The advantage is that they can create a strong mating thread without producing cutting chips.

Where Are Self-Tapping Screws Used?

Self-tapping screw applications cover many industrial and construction products.

For high-volume production, the screw should be selected together with the substrate and installation process rather than as an individual component.

How to Choose Self-Tapping Screws for Metal

When selecting self-tapping screws for metal, start with these five factors:

1. Material

Identify whether the substrate is carbon steel, stainless steel, aluminium or another metal.

2. Thickness

Thin sheet metal and thicker steel sections may require different screw designs and point geometries.

3. Thread

Choose a thread suitable for the material and required thread engagement.

4. Screw Material and Finish

Carbon steel, stainless steel and different coatings offer different combinations of strength and corrosion resistance.

Common finishes include:

• Zinc plated

• Black oxide

• Phosphate

• Dacromet

• Geomet

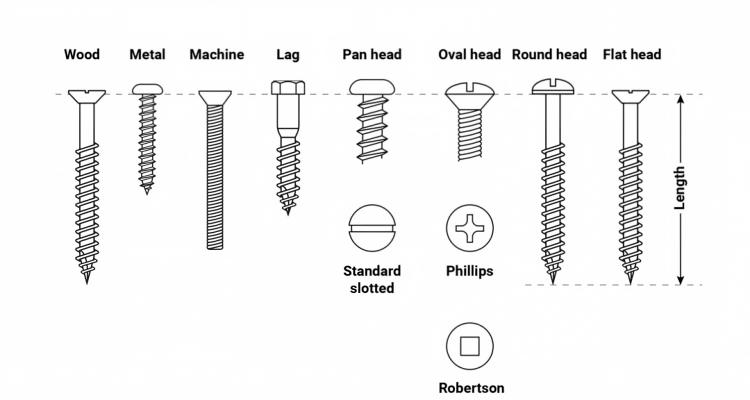

5. Head and Drive

Common options include pan head, countersunk head and hex washer head, with Phillips, Torx and other drive styles.

For outdoor or humid environments, corrosion protection should be considered as part of the complete fastening specification.

Can Self-Tapping Screws Be Used for Plastic?

Yes, but plastic applications require careful selection.

Different plastics have different hardness, flexibility and resistance to cracking. The screw thread, pilot-hole diameter, boss design and installation torque should therefore be matched to the plastic.

For example, a thread-forming screw may be suitable for certain plastic housings because it forms the thread by displacing material.

For OEM production, testing the screw with the actual plastic and component geometry is recommended before mass production.

Self-Tapping vs. Self-Drilling Screws

These two screw types are often confused.

Self-tapping screws create or form the mating thread, but many designs require a pilot hole.

Self-drilling screws have a drill-point tip that can create the hole and form the thread during the same installation process.

The right choice depends on material thickness, installation equipment and production requirements.

Common Mistakes to Avoid

Using the wrong pilot-hole size

A hole that is too small can increase installation torque. A hole that is too large may reduce thread engagement.

Ignoring material thickness

A screw suitable for thin sheet may not work correctly in thicker material.

Using one screw for every material

Metal, plastic and wood require different thread designs and installation conditions.

Over-tightening

Excessive torque can strip threads, damage plastic components or deform thin sheet metal.

Choosing the coating only by appearance

The coating should match the actual corrosion environment and performance requirements.

What Should Buyers Specify When Ordering?

For industrial purchasing, a complete specification helps avoid misunderstandings.

A typical inquiry should include:

Diameter + Length + Thread + Head + Drive + Material + Grade + Surface Treatment + Standard + Application

For example:

Phillips Pan Head Self-Tapping Screw, 4.2 × 25 mm, Carbon Steel, Zinc Plated, for Sheet Metal Assembly.

For OEM or private-label projects, buyers can also specify packaging, labeling, logo and other customization requirements.

Manufacturer Insights

Reliable self-tapping screws require consistent control of raw materials, dimensions, thread geometry, point design, heat treatment and surface finishing.

MALAXY has more than 20 years of fastener manufacturing experience in Haiyan, Zhejiang, China, supplying screws, bolts, nuts, anchors and washers to customers in more than 70 countries.

For self-tapping screw projects, specifications can be customized according to diameter, length, head style, drive, material, grade, surface treatment and packaging requirements.

The key is not simply choosing a screw that fits. It is choosing a fastening solution that performs consistently in the actual application.

FAQ

What are self-tapping screws?

Self-tapping screws are fasteners designed to create or form their own mating thread during installation.

What are self-tapping screws used for?

They are commonly used for sheet metal, plastic components, machinery, electrical equipment, appliances and general industrial assembly.

Can self-tapping screws be used for metal?

Yes. They are widely used for carbon steel, aluminium and other metal applications, provided the screw design matches the material and thickness.

Can self-tapping screws be used for plastic?

Yes. The screw thread, pilot-hole size and installation torque should be selected according to the specific plastic and component design.

What is the difference between self-tapping and self-drilling screws?

Self-tapping screws form or cut the mating thread, while self-drilling screws also have a drill point that creates the hole during installation.

Are stainless steel self-tapping screws corrosion resistant?

Stainless steel generally provides good corrosion resistance, but the appropriate stainless grade should be selected according to the service environment.

How do I choose the right self-tapping screw?

Consider the substrate, thickness, diameter, length, thread, head, drive, material, coating and installation method.

Conclusion

Self-tapping screws provide a practical fastening solution for many metal, plastic and industrial applications.

The right selection depends on the material, thickness, thread design, point, screw material, surface treatment and installation conditions.

For reliable production results, buyers should provide the application and material information when sourcing self-tapping screws. This allows the manufacturer to recommend a suitable specification rather than simply supplying a standard size.
