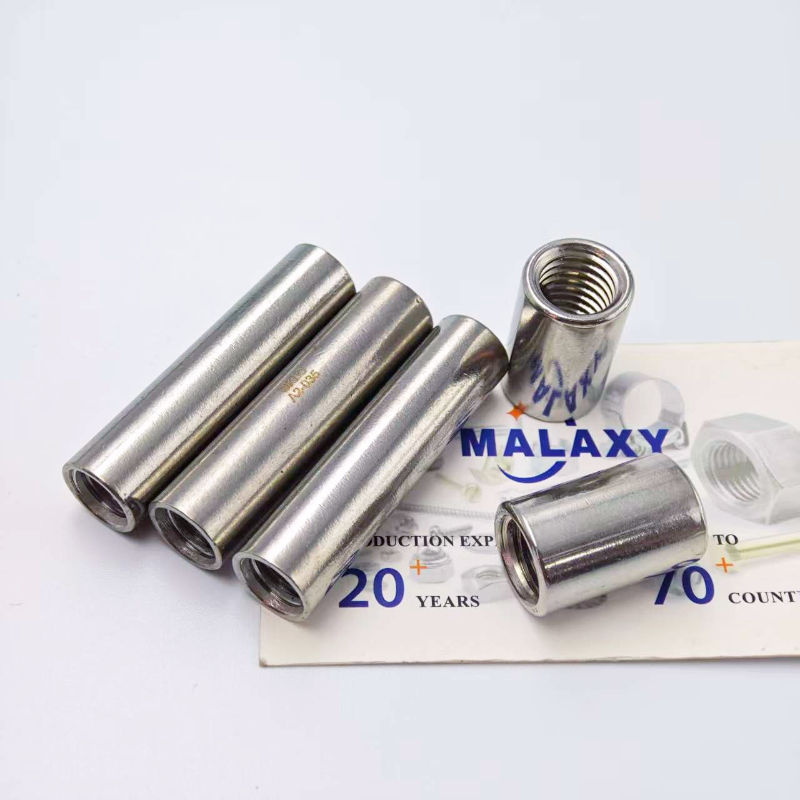

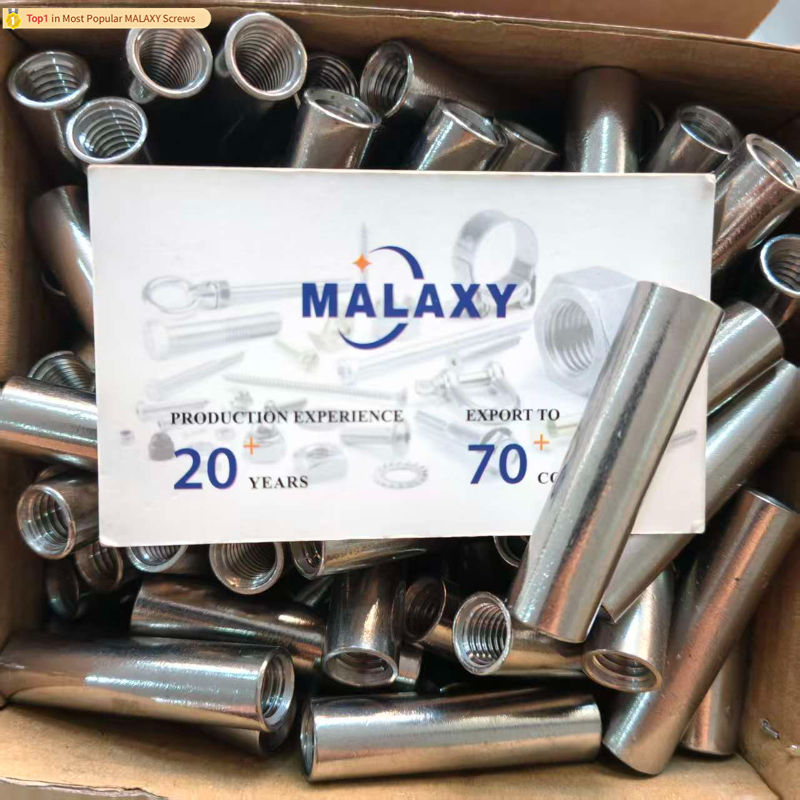

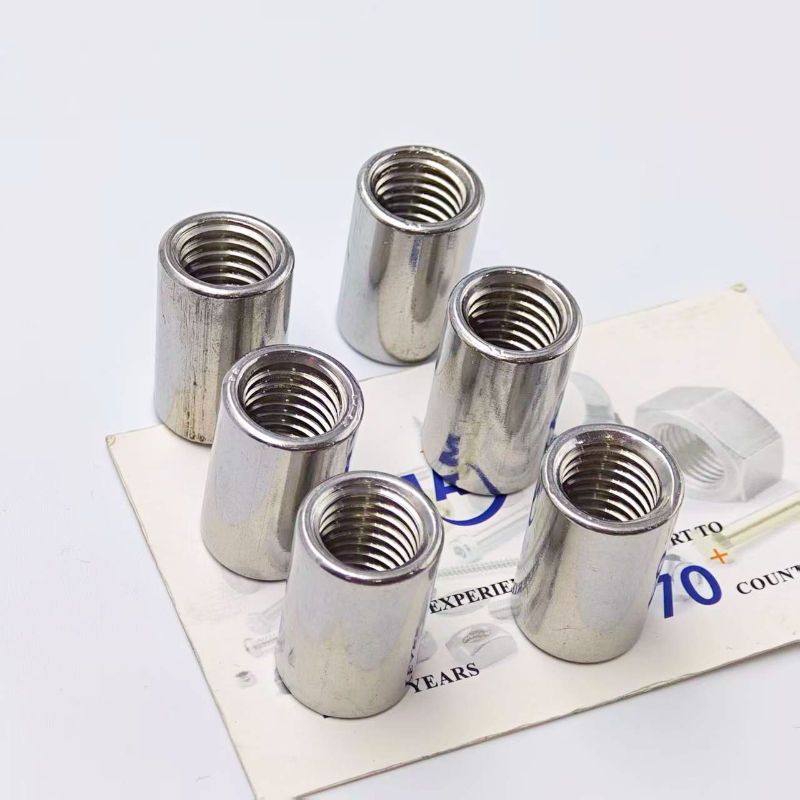

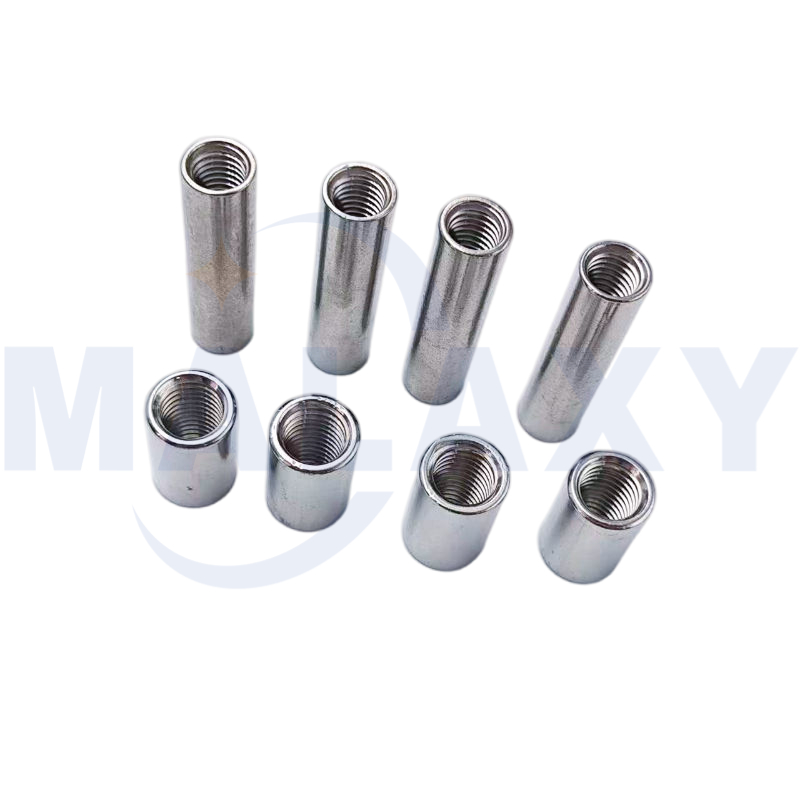

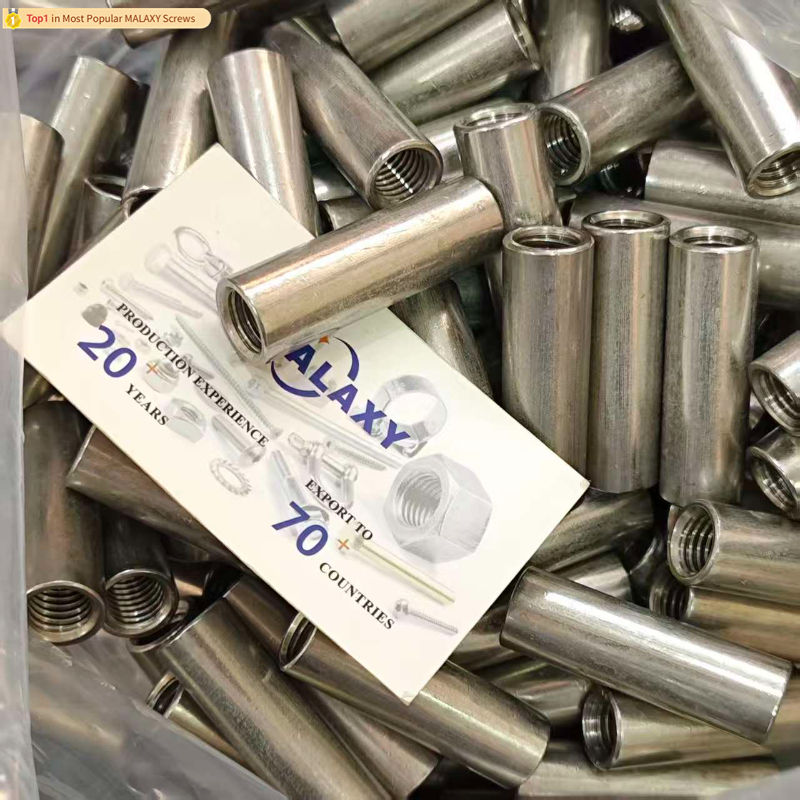

Connecting Coupling Long Nuts – Precision Threaded Fasteners for Industrial Assembly
Overview
Connecting coupling long nuts, also known as coupling nuts, extension nuts, or threaded rod connectors, are elongated hexagonal fasteners designed to join two externally threaded components—most commonly threaded rods, studs, or bolts—end to end.Their extended length provides superior thread engagement and axial alignment, making them essential components for extending rod assemblies, adjusting lengths, and creating secure structural connections.
Key Features
Extended Thread Engagement – Length is typically 2x to 6x the nominal diameter, distributing loads evenly across multiple threads and preventing stripping under tension.
Hexagonal Outer Shape – Designed for standard wrenches, enabling easy installation and torque control in confined spaces.
Double Chamfered Ends – Facilitates smoother threading onto rods and bolts, reducing assembly time.
Full Internal Threading – Continuous threads run the entire length of the nut, ensuring consistent engagement from both ends.
Material Options
Material | Grades/Classes | Key Properties |
|---|
Carbon Steel | 4.8 / 6.8 / 8.8 / 10.9 / 12.9 | High strength, cost-effective for general industrial use |
Stainless Steel | 304 (A2) / 316 (A4) | Excellent corrosion resistance, ideal for wet/outdoor and marine environments |
Alloy Steel | 4140 / 1045 | High-tensile strength for heavy-duty applications |
Brass | — | Anti-corrosion, suitable for electrical and plumbing applications |
Surface Finishes
Zinc Plated (Blue/White/Yellow) – Moderate corrosion protection for indoor and light-exposed environments
Hot-Dip Galvanized (HDG) – Superior corrosion resistance for outdoor, marine, and coastal applications
Plain (Self-Colored) – For dry indoor environments
Black Oxide – Matte finish with minimal corrosion resistance
Dacromet – High-performance anti-corrosion coating for severe conditions
Technical Specifications
Diameter Range: Metric M6–M64 / Imperial 1/4″–2.5″
Length Range: Metric 20–200 mm / Imperial 3/4″–8″
Thread Types: Metric Coarse/Fine, UNC, UNF, BSW
Thread Direction: Right-hand (standard), Left-hand (optional), Mixed RH+LH for tensioning
Standards Compliance: DIN 6334, ASME B18.2.2, ISO 4032, ASTM A194, IFI-128
Common Variations
Hex Coupling Nuts – Standard 6-sided design for wrench tightening
Reducing Coupling Nuts – Connect rods of different thread sizes (e.g., M16-to-M12)
Slotted Coupling Nuts – Internal slots for pin insertion to prevent rotation
Heavy Hex Coupling Nuts – Thicker walls and extended body for structural tension splicing
Flanged Coupling Nuts – Integrated washer base for improved load distribution
Key Applications
Industry | Application Examples |
|---|
Construction | Rebar extension, anchor bolt connections, bridge girder assembly, high-rise structural frameworks |
Machinery Manufacturing | Shaft alignment in conveyor systems, hydraulic press assemblies, equipment mounting |
Automotive & Transportation | Engine component assembly, suspension systems, chassis connections |
Solar & Renewable Energy | Threaded rod connections in rooftop solar racking systems |
Plumbing & HVAC | Pipe joining, hanger rod extensions, stainless steel nuts for rust resistance |
Heavy Industry | Heavy machinery where high tensile strength is required to secure components |
Why Choose MALAXY (Shanghai Malaxy Foreign Trade Co., Ltd.)
As a leading fastener manufacturer in the industry, MALAXY delivers connecting coupling long nuts that meet rigorous international standards:
Certified Quality – ISO 9001, CE, RoHS compliant; full material traceability
Global Shipping – FOB Shanghai / CIF to EU, US, and global ports with 15–30 day lead times
Customization – Available in non-standard lengths, thread pitches, special materials, and custom coatings upon request
100% Inspection – Dimensional accuracy, thread go/no-go testing, and hardness verification before shipment
Competitive Pricing – Factory-direct pricing with MOQ flexibility
Custom Solutions Available
MALAXY supports OEM/ODM orders. Whether you require non-standard lengths, special thread configurations (left-hand threads, mixed RH+LH), high-temperature coatings (Xylan), or specific material grades (Grade 12.9, stainless steel 316), our engineering team can manufacture to your drawings or specifications.
Contact Us
For inquiries, specifications, or to request a quote for Connecting Coupling Long Nuts, please contact Shanghai Malaxy Foreign Trade Co., Ltd. today.
